Description

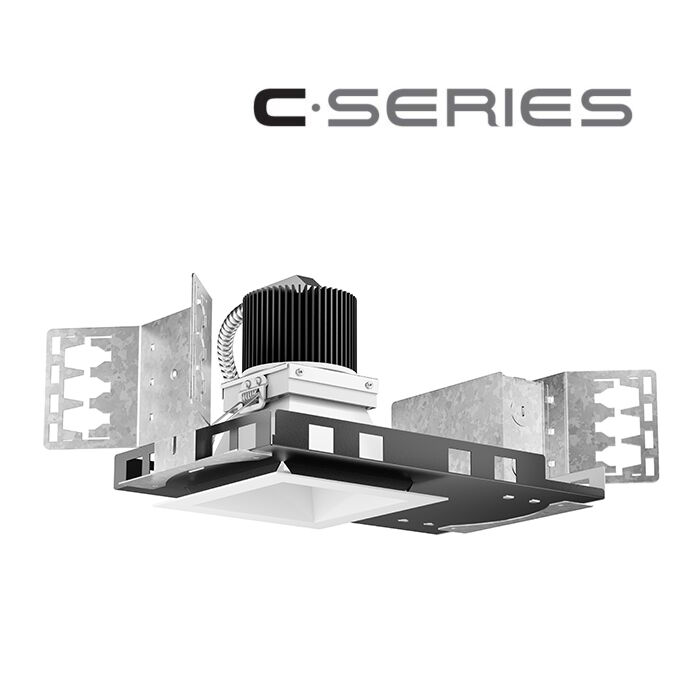

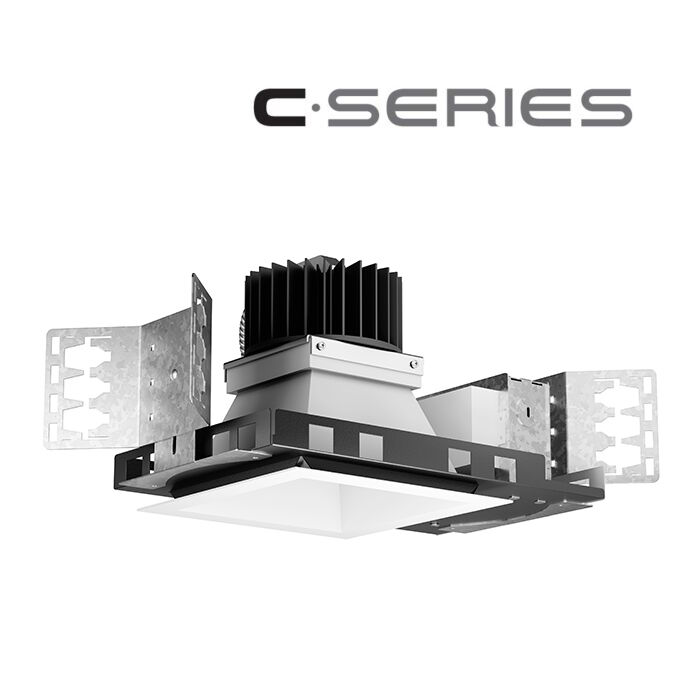

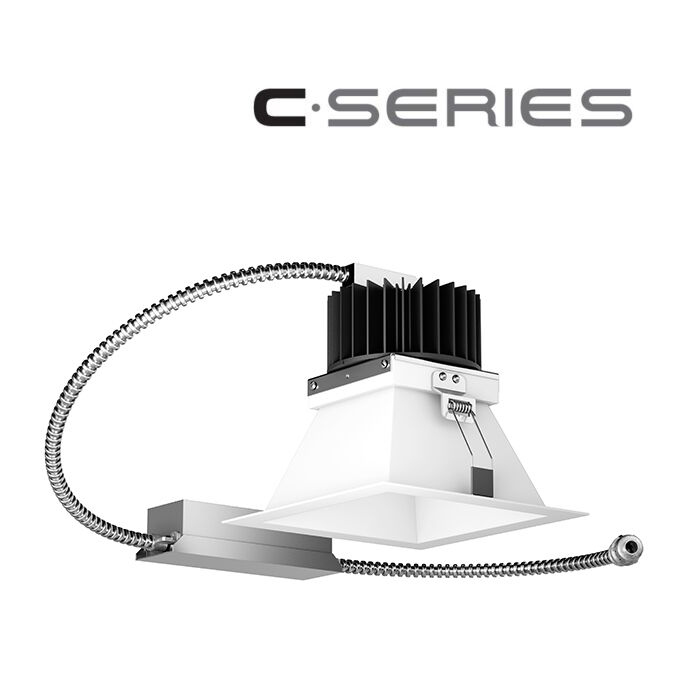

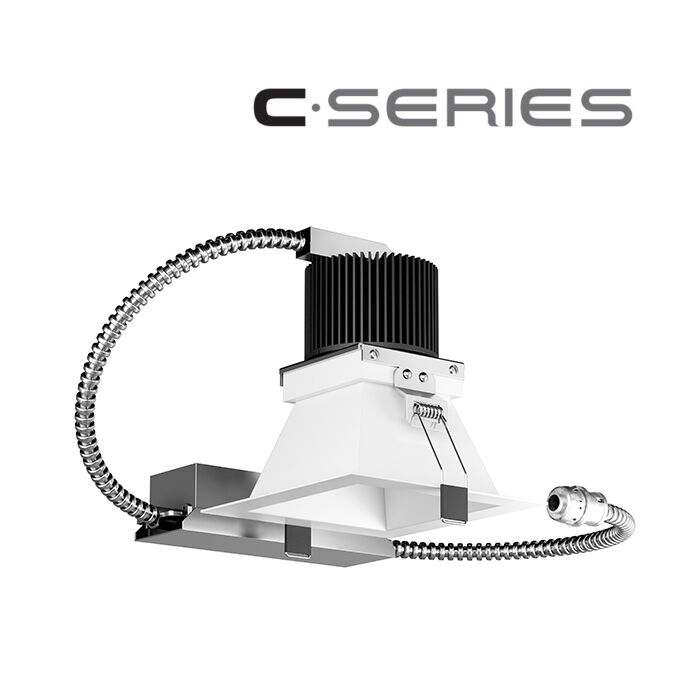

Embrace the contemporary elegance of the square form with clean lines and geometric symmetry to complement minimalist and urban-inspired interiors in a luminaire with lumen output up to 4,000lm for medium to high ceilings. Introducing the C-Series 4" and 6" square luminaire, an extension to our popular architectural/commercial grade recessed LED round downlight family.The luminaire is available in two versions:

  • Lumen/ColorSelect with SMD LED design and a frosted polycarbonate lens for soft even lumen distribution.
  • COB LED design featuring a high center beam candlepower for concentrated light output and uniformity

The C-Series Square is a cost-effective lighting solution for large-scale retail stores, offices, restaurants hospitality venues and other commercial lighting applications.

Benefits

  • Heavy-duty self-flanged aluminum die-cast reflector
  • Reflector is twist and lock for easy access

SMD Version:

  • High lumen output up to 3700lm (50W)
  • Soft even lumen distribution

COB Version:

  • High lumen output up to 3500lm (40W)
  • Assorted dimming options
  • Multiple beam spreads for flexible beam control

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Emergency
  • Ambient Lighting
  • Downlight
