LRCELD802 : 8" Commercial Shallow LED Retrofit (1300 Lumen LED)

Phase Out

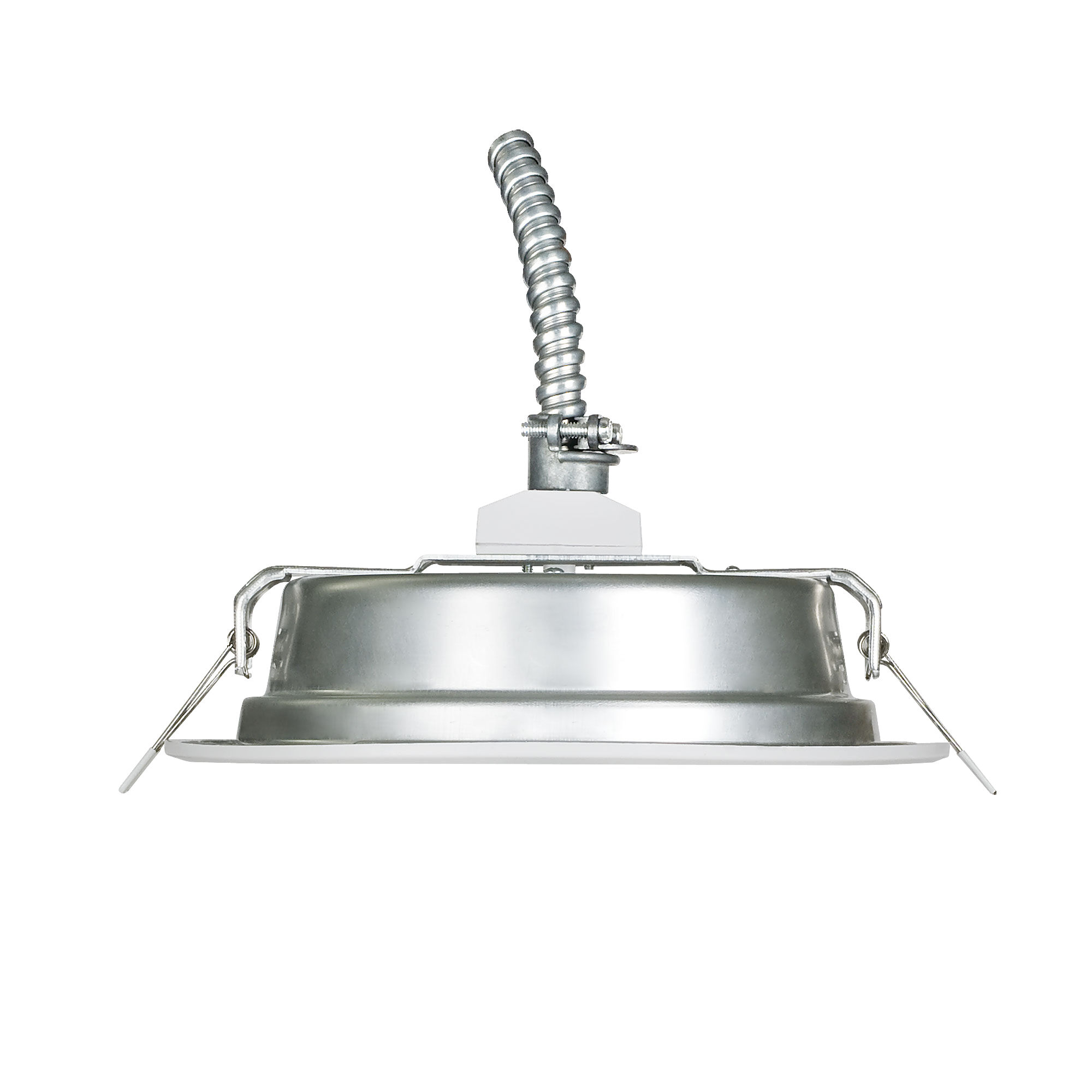

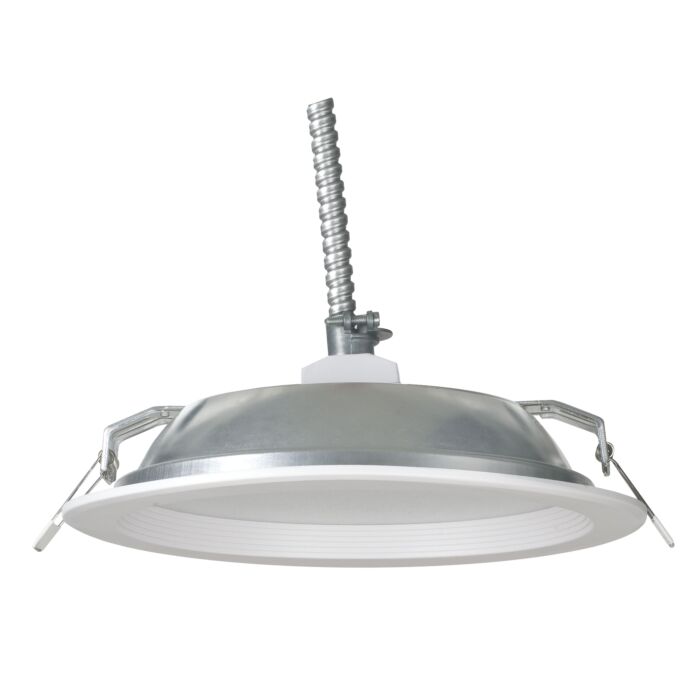

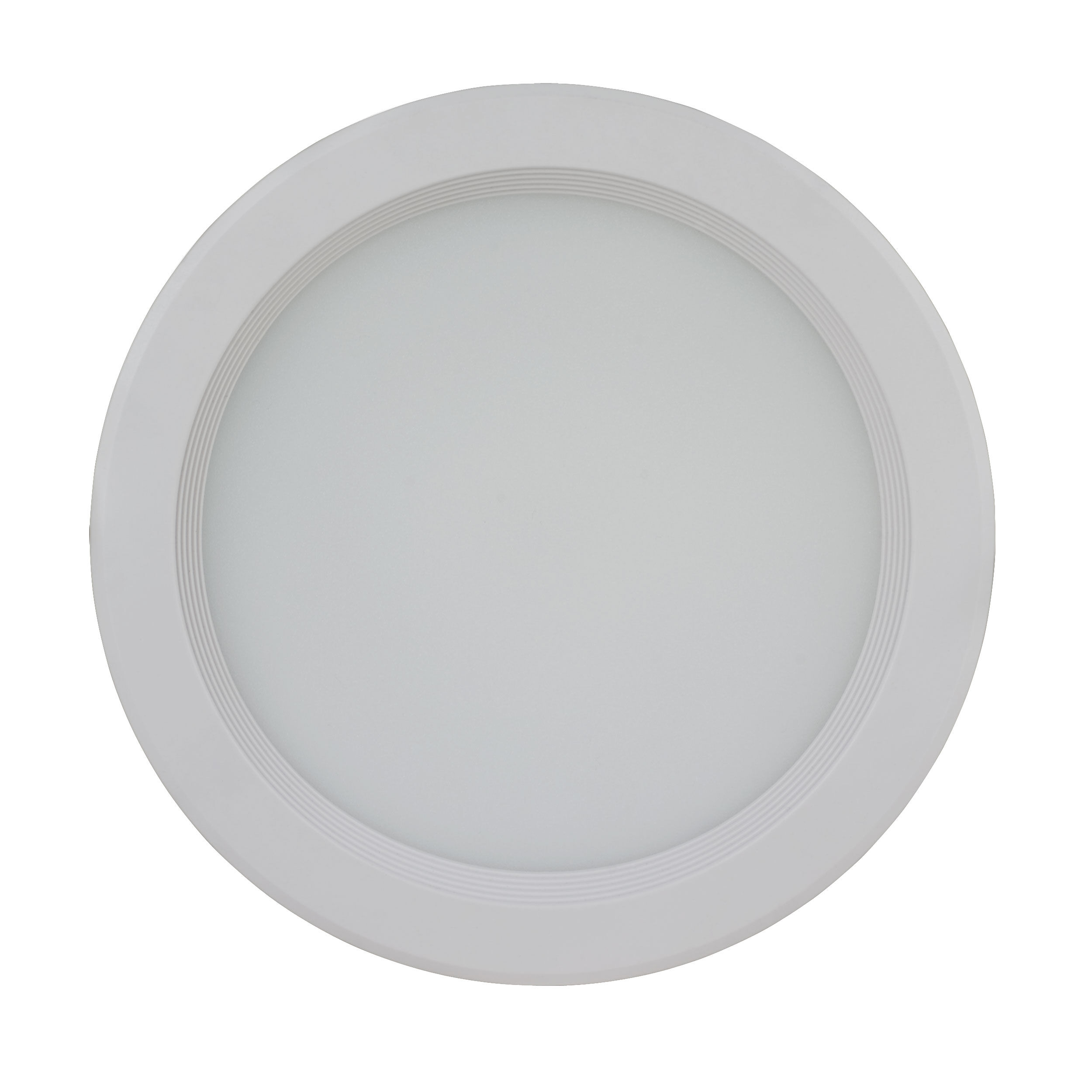

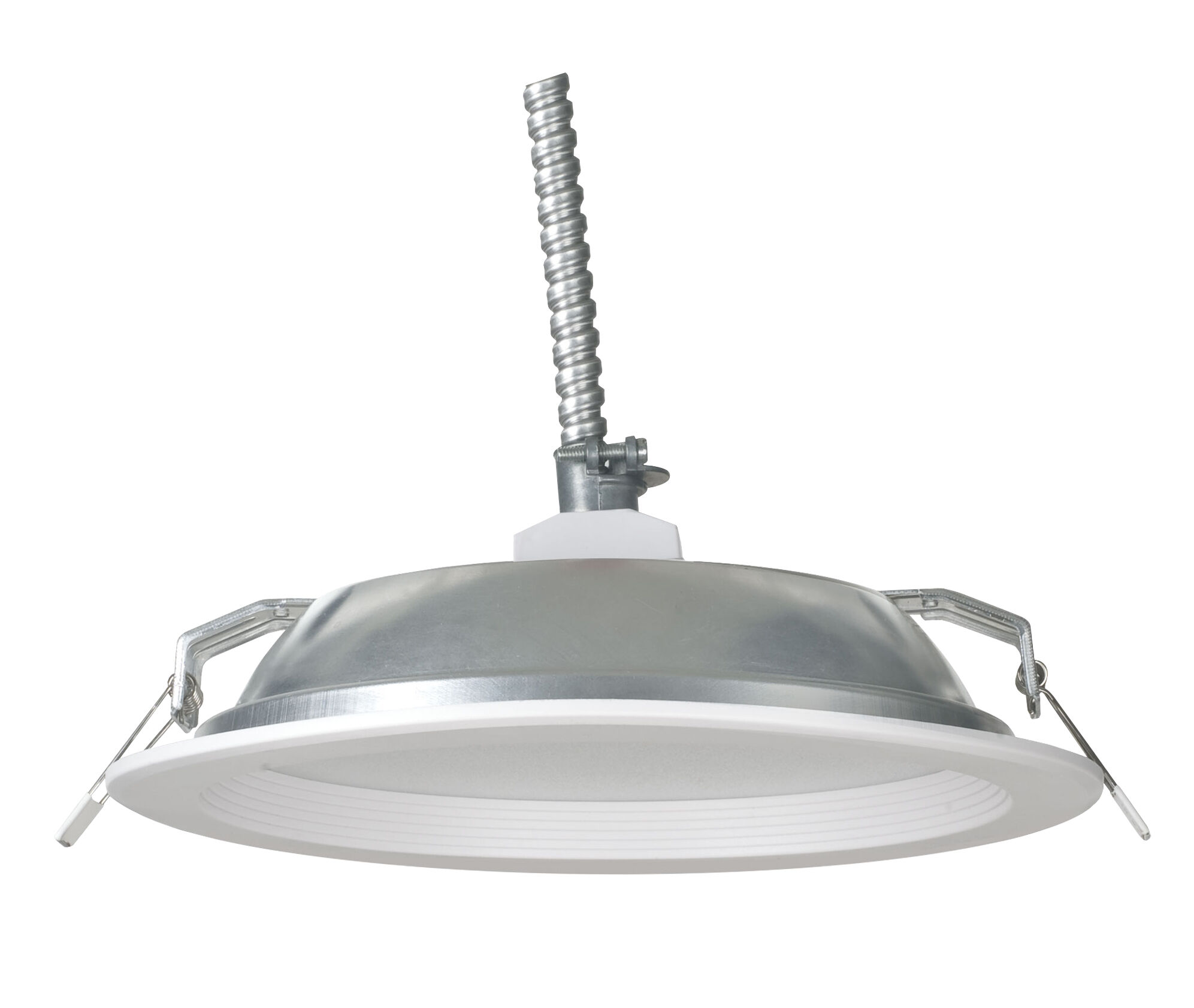

8" Commercial Shallow LED Retrofit (1300 Lumen LED)

Downloads

  • Add to Project Folder ?

    Project Folder

    Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Description

Commercial Retrofit for Open Frame Incandescent, HID and CFL Downlights.

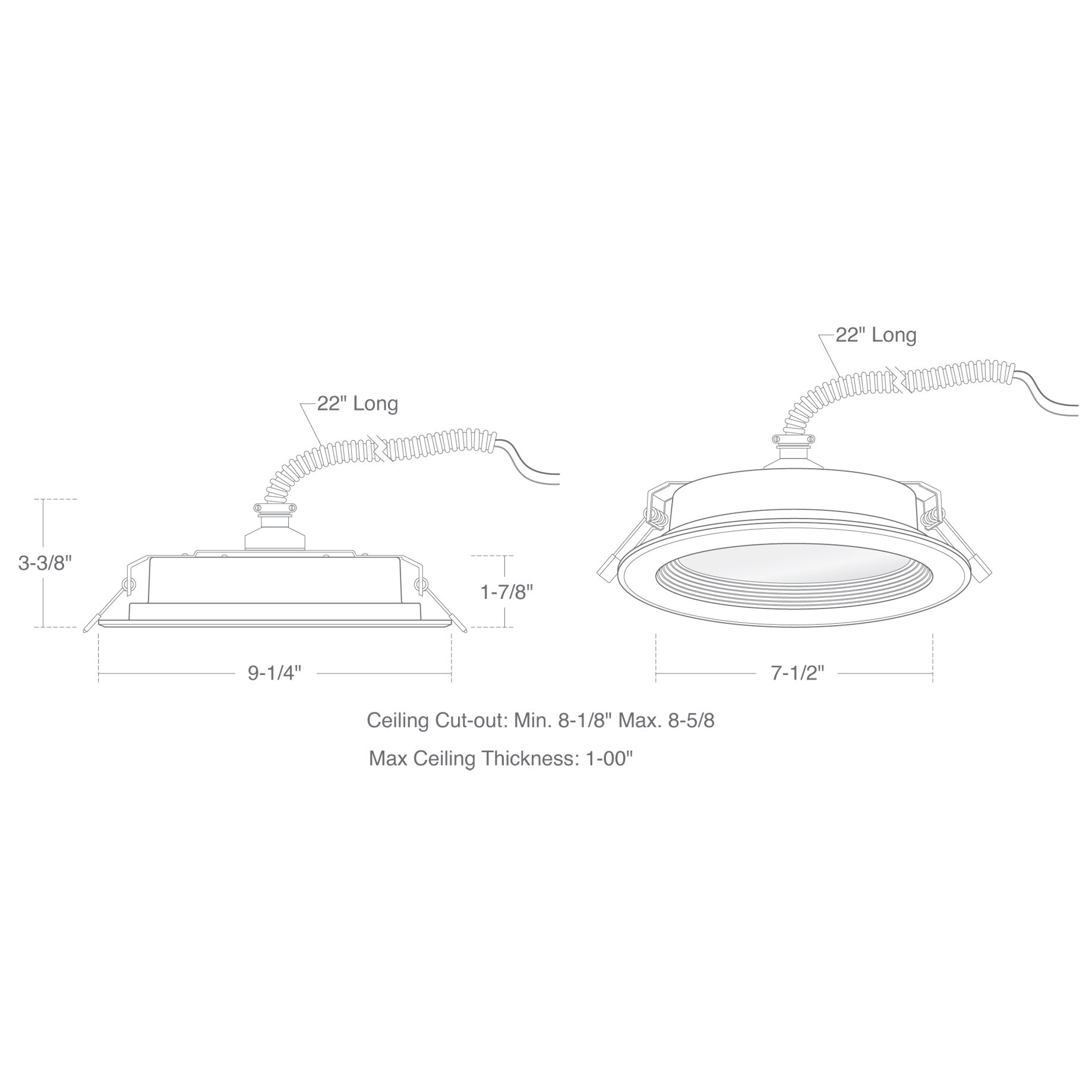

 Application Dimensions


Ceiling Cut-out Min: 8.125" (206mm)


Ceiling Cut-out Max: 8.625" (220mm)


Flange Diameter: 9.25" (235mm)

Benefits

  • Easy to install
  • Premounted steel spring clips secure trim to virtually all 8" frame-in housings
  • Fits up to 2 1/4" Ceiling Thickness
  • (-DIN) option works with most 2-Wire Incandescent Dimmers
  • Compatible with Lithonia LP6U, Lightolier 1002PI and Portfolio CD6 Series* (*requires LITON OVP6 Ring Adapter)

Available Features ?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Damp Location
  • US Assembled
  • Wet Location
  • Dedicated LED
  • Ambient Lighting
  • Downlight
  • ETL LISTED
  • 120V
Inquire about this Product! Click Here

Order Configurator

You can not select this item
You can not select this item
You can not select this item

* Required Fields

  • Add to Project Folder ?

    Project Folder

    Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.
347V Input with 0-10V Dimming available. Consult factory for lead times.

Availability: In stock

Ideal for low to high ceiling heights in commercial applications that require smooth ambient lighting without sacrificing footcandles.
*Available in August 2017

Dimming Diagrams
