CH/CRTR_SHL : C • Series Super Low Glare, Shallow LED
Downloads
?
Project Folder
Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.
Description
New Construction: Architectural/Commercial-grade super-low glare, shallow recessed lensed LED luminaire is for new construction projects where there is minimal plenum air-space in ceiling. Deeply recessed lens provides reduced glare and visual comfort.
Retrofit/Remodel: Architectural/Commercial-grade super-low glare, shallow recessed lensed LED luminaire is for retrofit/remodel projects where there is minimal plenum air-space in ceiling. Deeply recessed lens provides reduced glare and visual comfort.
Benefits
New Construction:
- Deeply recessed lens and 65.5° - 67.5° visual cutoff for reduced glare

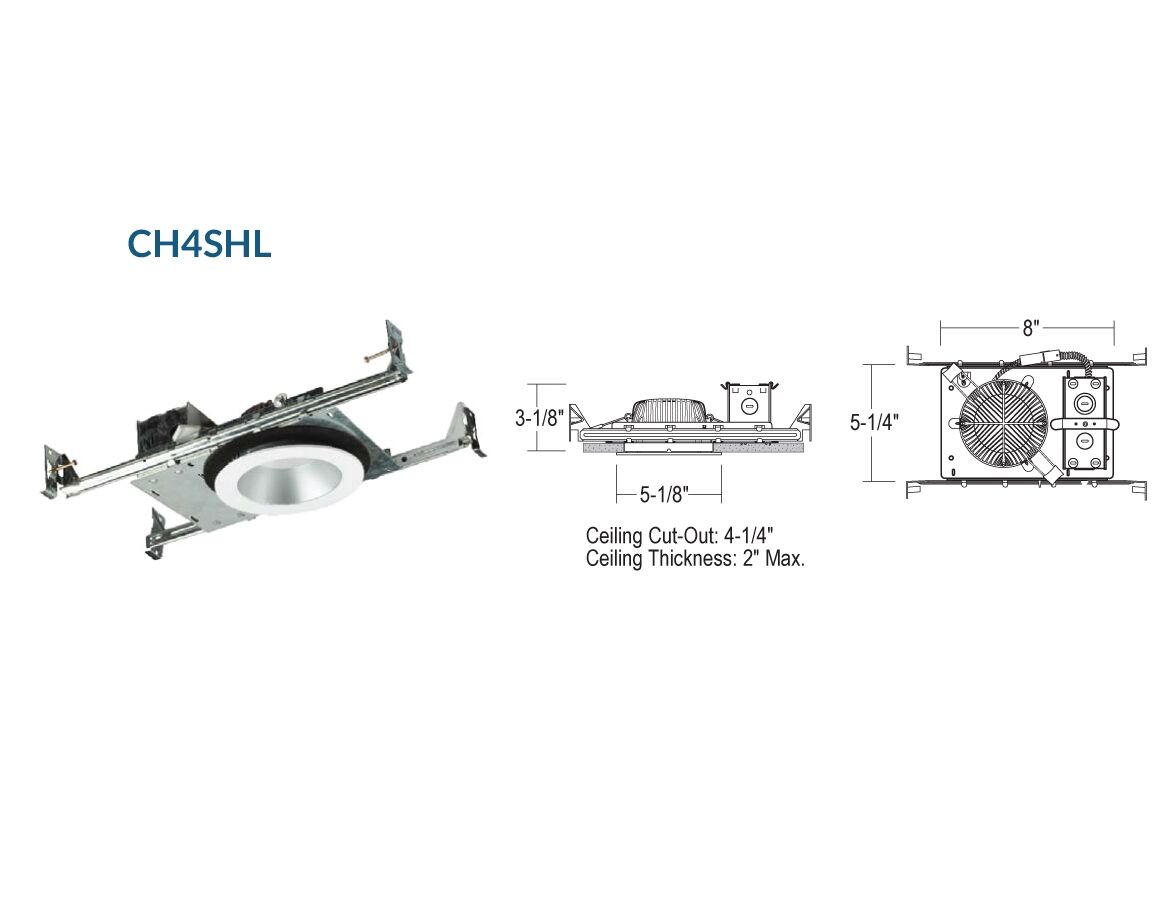

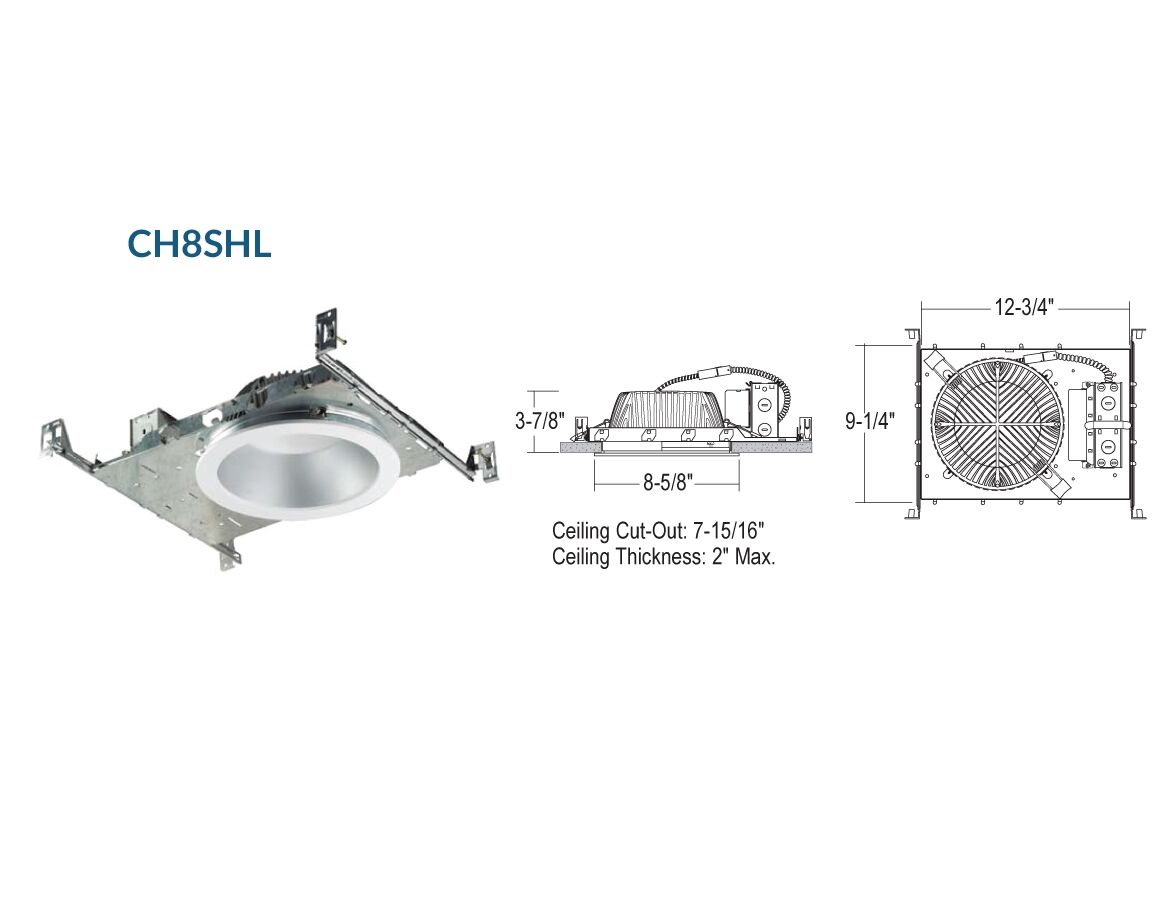

- Shallow 3-1/8" to 3-7/8" depth for ceilings with minimal plenum air-space

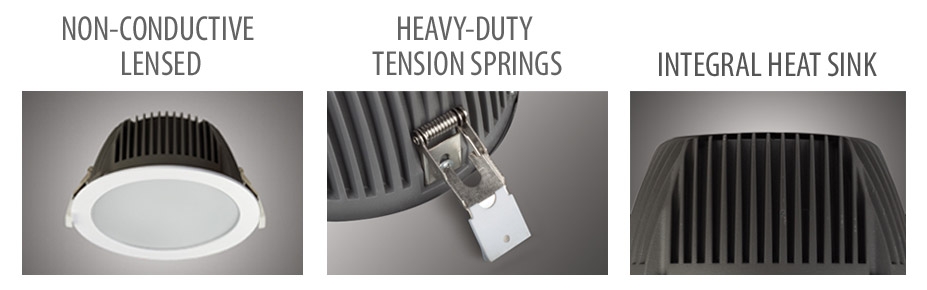

- Non-conductive dead-front flanged option (-LENS) for wet locations
Retrofit/Remodel:
- Deeply recessed lens and 65.5° - 67.5° visual cutoff for reduced glare

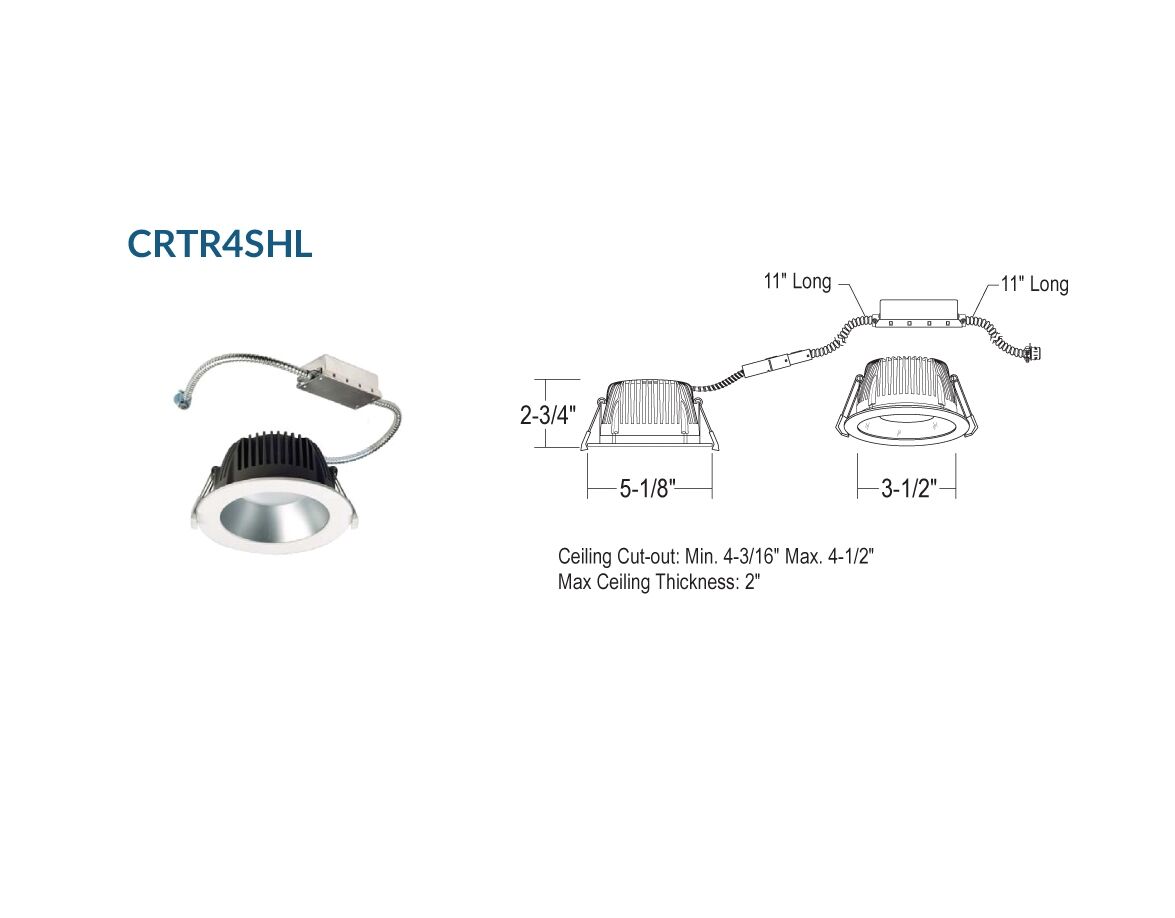

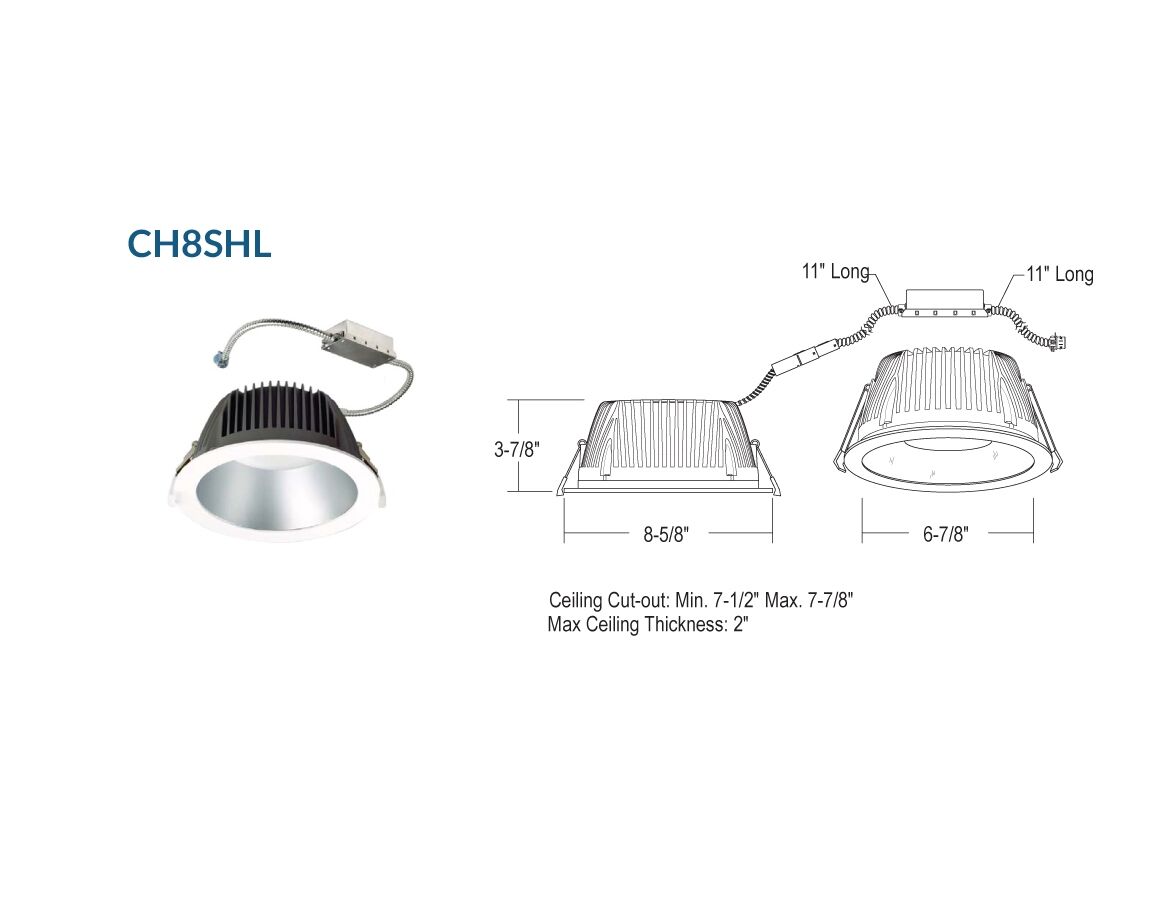

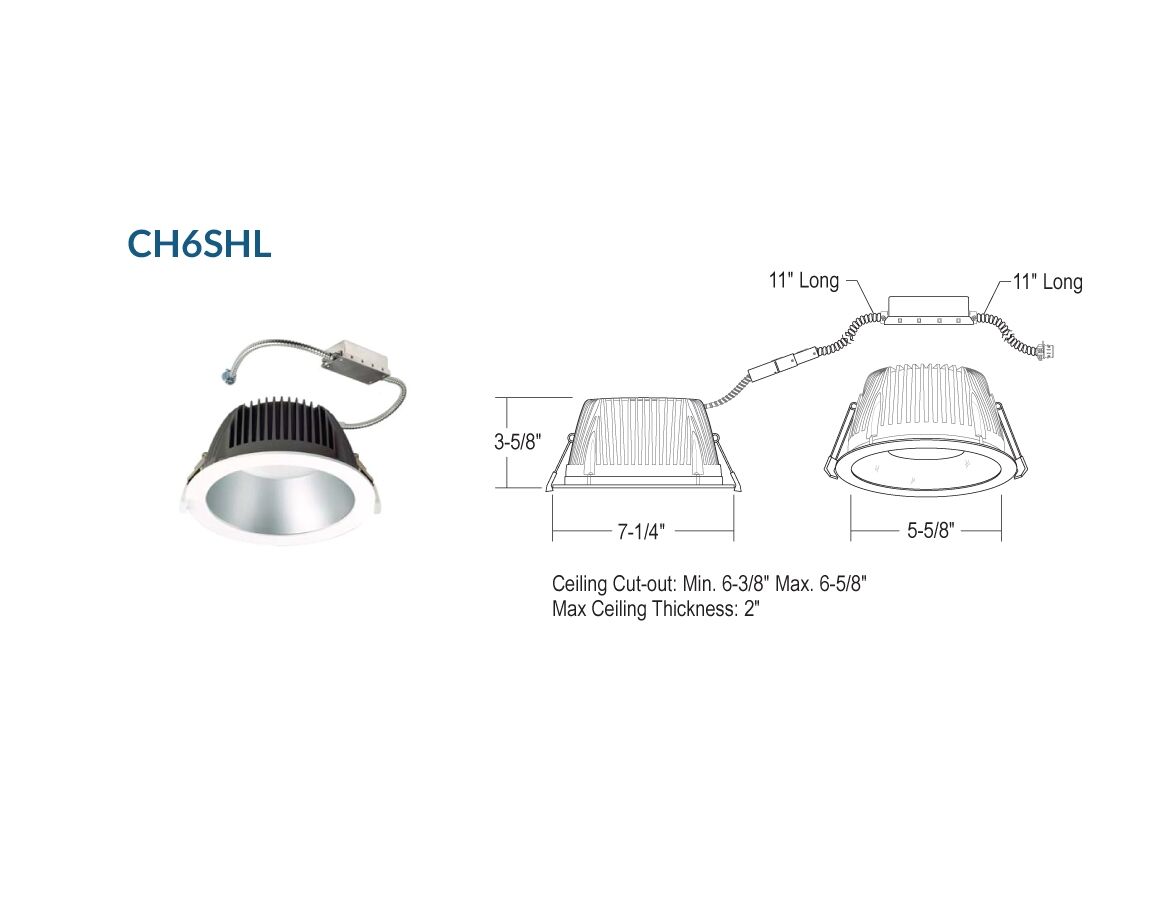

- Shallow 2-3/4" to 3-7/8" depth for ceilings with minimal plenum air-space
- New junction box option for remodels without frames
- Non-conductive dead-front flanged option (-LENS) for wet locations
Available Features
?
Available Features
Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.
Available Features
Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.
