LCALD6H50 : 16" LED Surface & Pendant Mount Refractor (2600-6000lm)

16" LED Surface & Pendant Mount Refractor (2600-6000lm)
16" LED Surface & Pendant Mount Refractor (2600-6000lm) 16" LED Surface & Pendant Mount Refractor (2600-6000lm) 16" LED Surface & Pendant Mount Refractor (2600-6000lm) 16" LED Surface & Pendant Mount Refractor (2600-6000lm)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Description

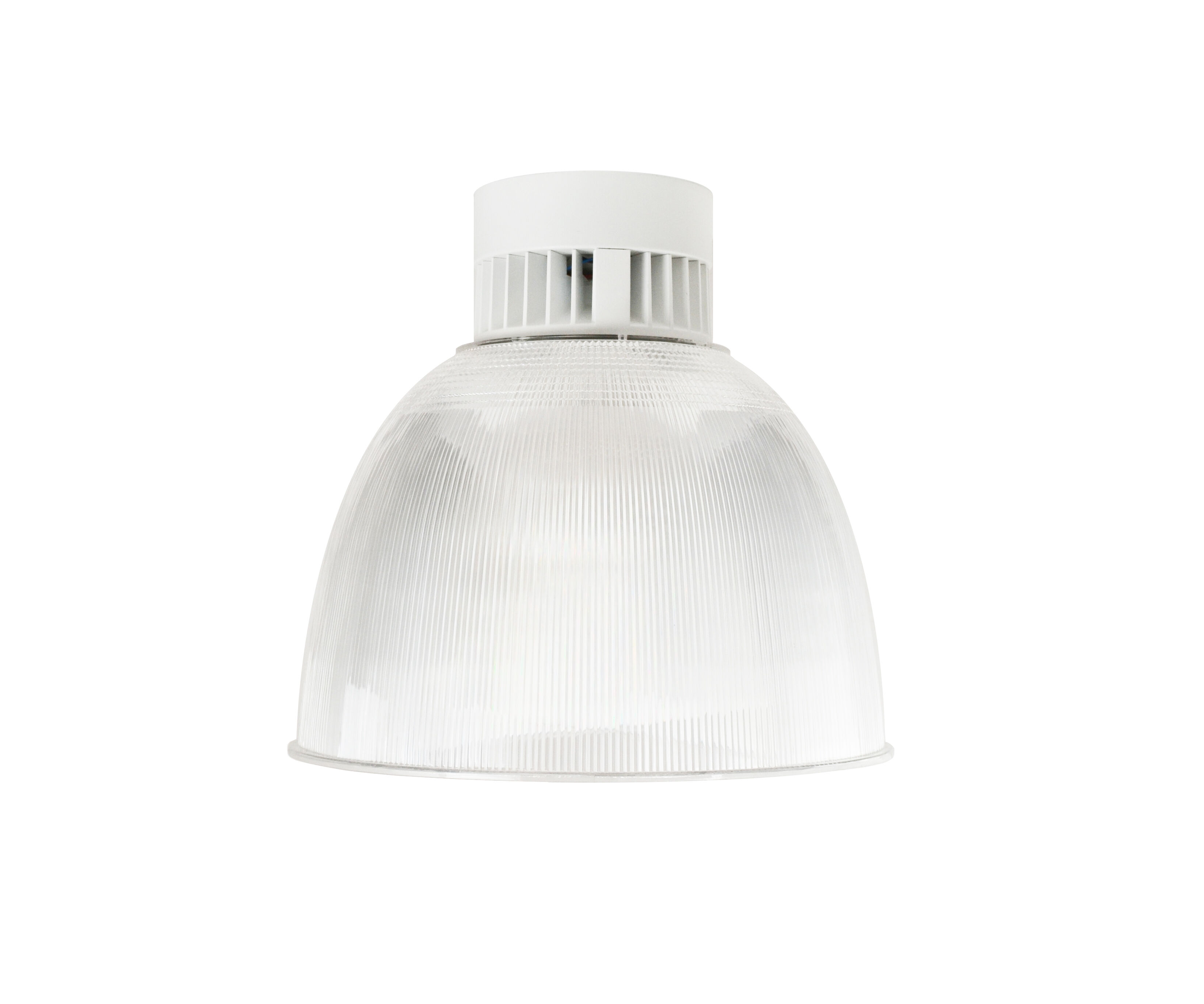

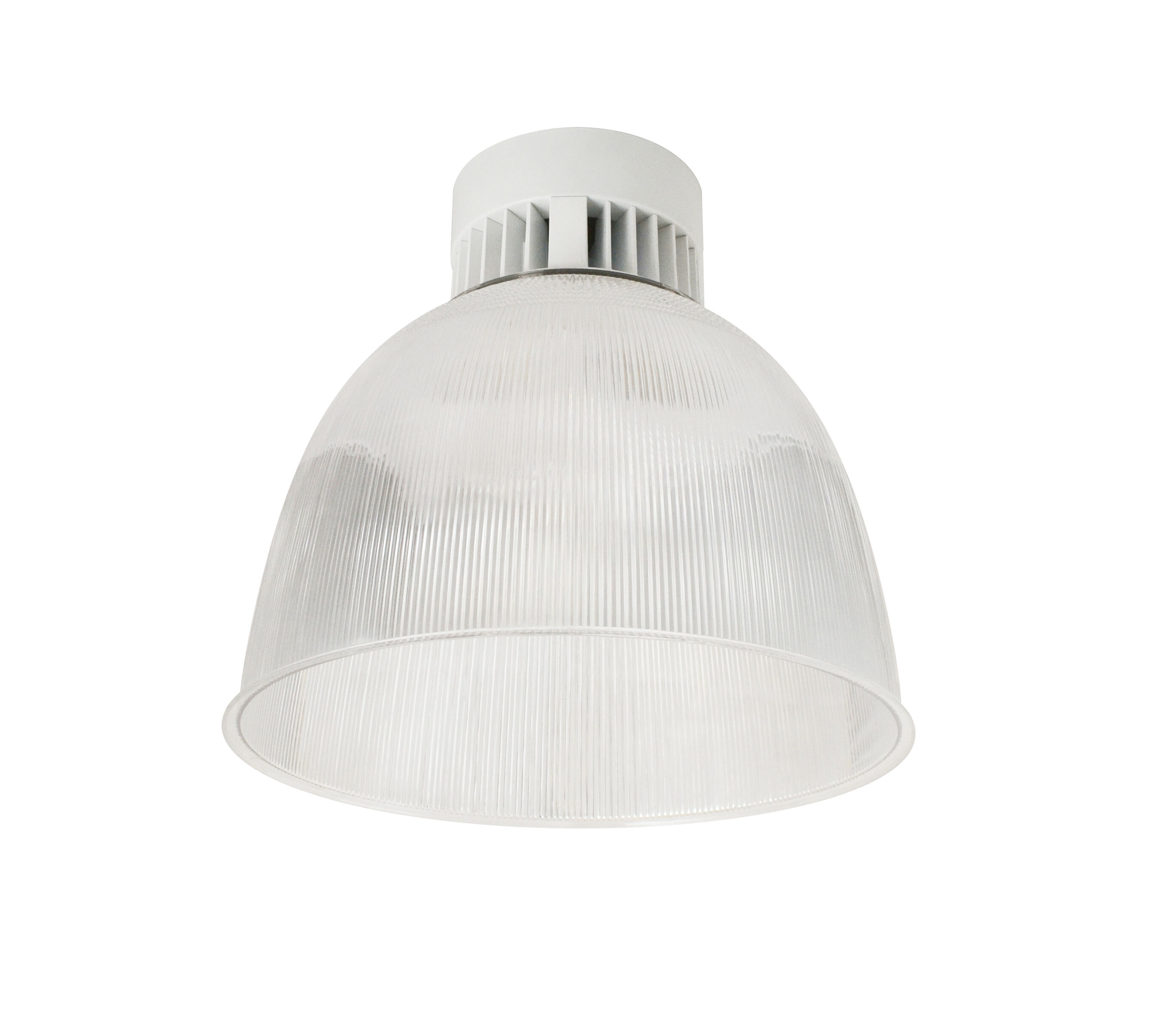

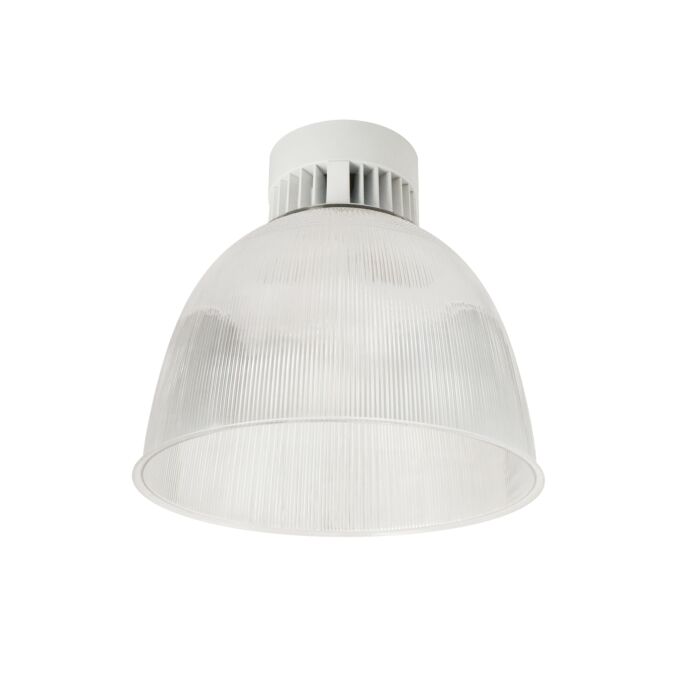

16" LED Surface & Pendant Mount Refractor

Benefits

  • 120V/277V Input Standard, 347V Available
  • Exclusive UniDim™ Universal LED Dimming Option Works with 0-10V,
    ELV and Incandescent Controls
  • 1% Dimming available with 120VAC, 0-10V, DALI, DMX AND Lutron Ecosystem
  • Sturdy Steel Fixture Housing, <8lbs
  • Pendant mounting available for flat and sloped ceilings
  • Shock Absorbent Acrylic Refractor



Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Emergency
  • ETL Listed
  • US Assembled
  • Ambient Lighting
  • Downlight
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

1 Lumens are nominal delivered lumens. See Photometry page for exact values.
2 Special Order. Minimum order quantity (MOQ), extended lead time may apply. Consult Factory.
3 (UE-DEC) & (UE-DHL) not available for (550) lumen package.
4 (1) Blank: 3000K, 80CRI not available with (350) or (450) lumen package. (2) -T27: 2700K, 80CRI not available with (101), (151), (210) or (320). (3) -T27-C97: 2700K, 97CRI not available with (550). (4) -T35: 3500K, 80CRI not available with (350), (450), or (550). (5) -T40-C80: 4000K, 80CRI not available with (550).

347 Input with 0-10V available. Consult Factory for details and lead time.
Energy Efficient Chip-On-Board (COB) Singular LED Light source provides for smooth uniform light output, eliminating the multiple shadow effect seen by multiple LED source products.
Binned with 3-Step MacAdam Ellipses as recommended by Ansi Standard. Available in 2700k, 3000k, 3500k, 4000k, 5000k.
Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.

Dimming Diagrams
