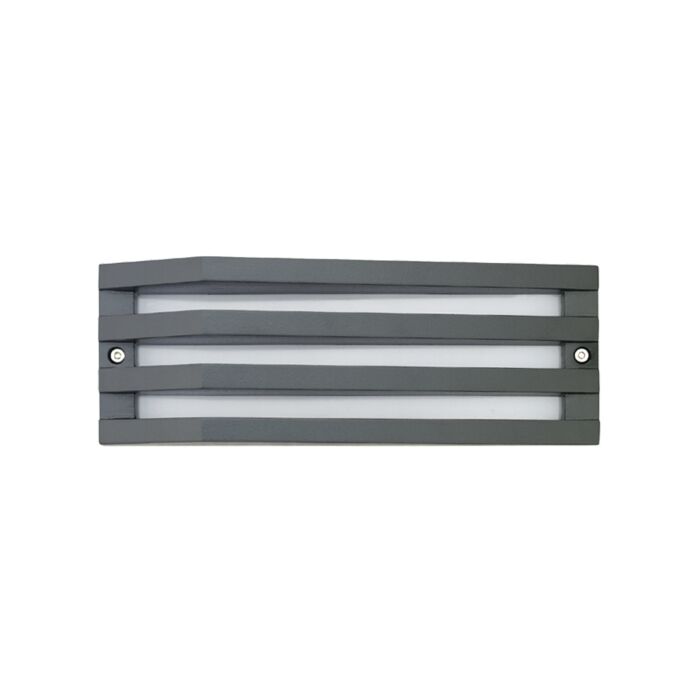

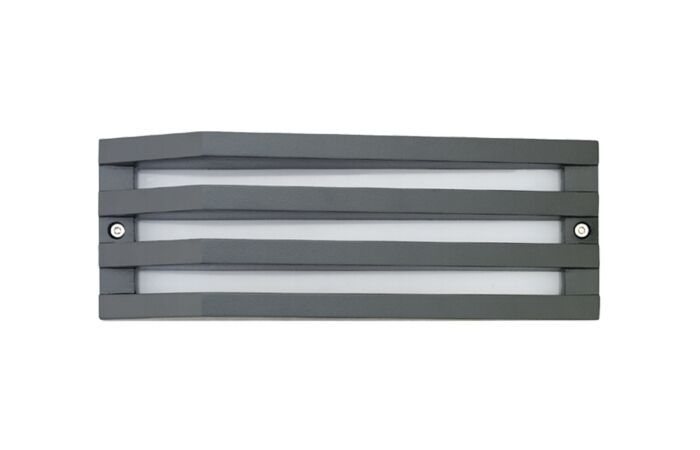

SL633 : Protruded Louver Faceplate Step Light

Protruded Louver Faceplate Step Light
Protruded Louver Faceplate Step Light Protruded Louver Faceplate Step Light Protruded Louver Faceplate Step Light
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Description

Applications:

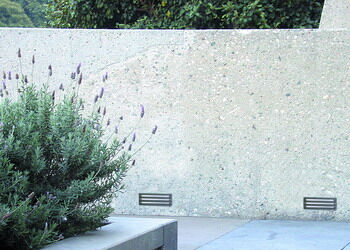

Recessed Wall Luminaire designed for commercial, architectural, and residential installation. Designed to conform to the architectural requirements for low mounting heights for the illumination of steps, stairways, walkways, aisles, ramps, and other indoor and outdoor applications. Designed for horizontal mounting.

Benefits

  • High-Quality Die-Cast Construction
  • High 80 CRI
  • 120V/277V Option
  • 5-Year Warranty
  • 32W CFL Equivalent

Electrical:

LED:

  • (1) 4.5W LED arrays, CRI: 80 min., 384lm.

    LED Colors: Warm White (3000K), Neutral White (4000K), or Cool White (5000K).
    Input: 120V (4.6W max.), min. operating temp. -30°C.
    For line voltage dimming (120Vonly) use Lutron® "Ariadni®/Toggler®" wall dimmer #AY-603P-xx or # TG-603PRxx (xx = color), by others.

  • (2) 4.5W LED arrays, CRI: 80 min., 768lm.

    LED Colors: Warm White (3000K), Neutral White (4000K), or Cool White (5000K).
    Input: 120V (9.2Wmax.), min. operating temp. -30°C.
    For line voltage dimming (120V only) use Lutron® "Ariadni®/Toggler®" wall dimmer #AY-603P-xx or # TG-603PRxx (xx = color), by others.

Through Wiring:
A maximum of four (4) No. 12 AWG conductors (plus ground wire), rated 75°C min. Two (2) threaded holes (1/2-14 NPSM) provided.

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • ADA Compliant
  • Cold Weather
  • Outdoor
  • US Assembled
  • Wet Location
  • Ambient Lighting
  • Pathway Lighting
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

1 Special Order Finish. Minimum order quantity (MOQ) applies. Orders less than MOQ are subject to a special paint set-up fee for the quantity ordered. Extended lead times may apply. Consult Factory.
2 Special Order. Minimum amount required and extended lead times may apply.
3 (-T35) 3500K is not available with (UE-DUN) dimming option.

Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.
