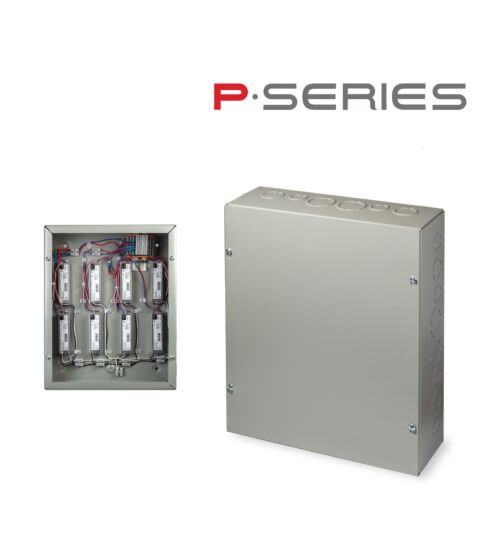

/LD5PNLJBX : 1.5" P-Series Micro Recessed LED Remote Panel Box, Up to 8 Drivers (1 Driver per Fixture)

1.5" P-Series Micro Recessed LED Remote Panel Box, Up to 8 Drivers (1 Driver per Fixture)
1.5" P-Series Micro Recessed LED Remote Panel Box, Up to 8 Drivers (1 Driver per Fixture) 1.5" P-Series Micro Recessed LED Remote Panel Box, Up to 8 Drivers (1 Driver per Fixture)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Description

Remote panel box. Up to 8 drivers. 1 driver per fixture.

Benefits

  • Each 12" x 15" NEMA1 wall mounted enclosure can contain up to eight (8) 50W drivers and has a depth of 4".
  • Constructed of 16 gauge steel with ANSI 61 gray powder coat finish.
  • Box has knockouts on all 4 sides for 1/2", 3/4", and 1" conduit and a screw down door.
  • Box is cULus listed with a UNSPSC 39121301 code.
  • Drivers come prewired with low voltage output to DIN terminals for poke in connections for 12-28 AWG wire as well as 0-10V dimming as standard.
  • Input is 120V - 277V with screw down terminals, Input terminal is rated for 600V 30A for 18 -10AWG wire.
  • Multiple boxes can be linked together.
  • PNLJBX (L x W x H): 15-1/8" x 12-1/8" x 4".

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • US Assembled
  • Dedicated LED
  • Adjustable
  • 1-Accessory
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

1 Special order. Minimum order. Extended lead time may apply. Consult Factory.
2 Maximum ceiling thickness is 3/4" (to allow adjustability feature).
3 (-L06) must be ordered with Power Supply Lumen Option (-C020) and (-L10) must be ordered with Power Supply Lumen Option (-C030).
4 (-TWD) and (-T24) not available with (-B15) and only available with the Power Supply Lumen option of (-C030: 1000lm (12W)).
5 Beam Spread Options not available with Wallwash trims LRLD1573/LRXLD1573/LRLDQ1573 and LRXLDQ1573.
6 (-SUN-RMT) & (-AWN) sensors sent with mounting clips for existing ceiling applications. Consult Factory for Layout Assistance.
7 For power supply, LD5INTJBX, (-DCSM) only available for (-C030) option.
8 (-EMAC40) can be wired for loads (>40W) with 0-10V dimmable driver.
9 Consult Factory for custom pre-wired connector lengths.
10 For LD5RMTJBX power supply: (-5QC, -4QC) only compatible with Blank: TRIAC/ELV Dimming.
