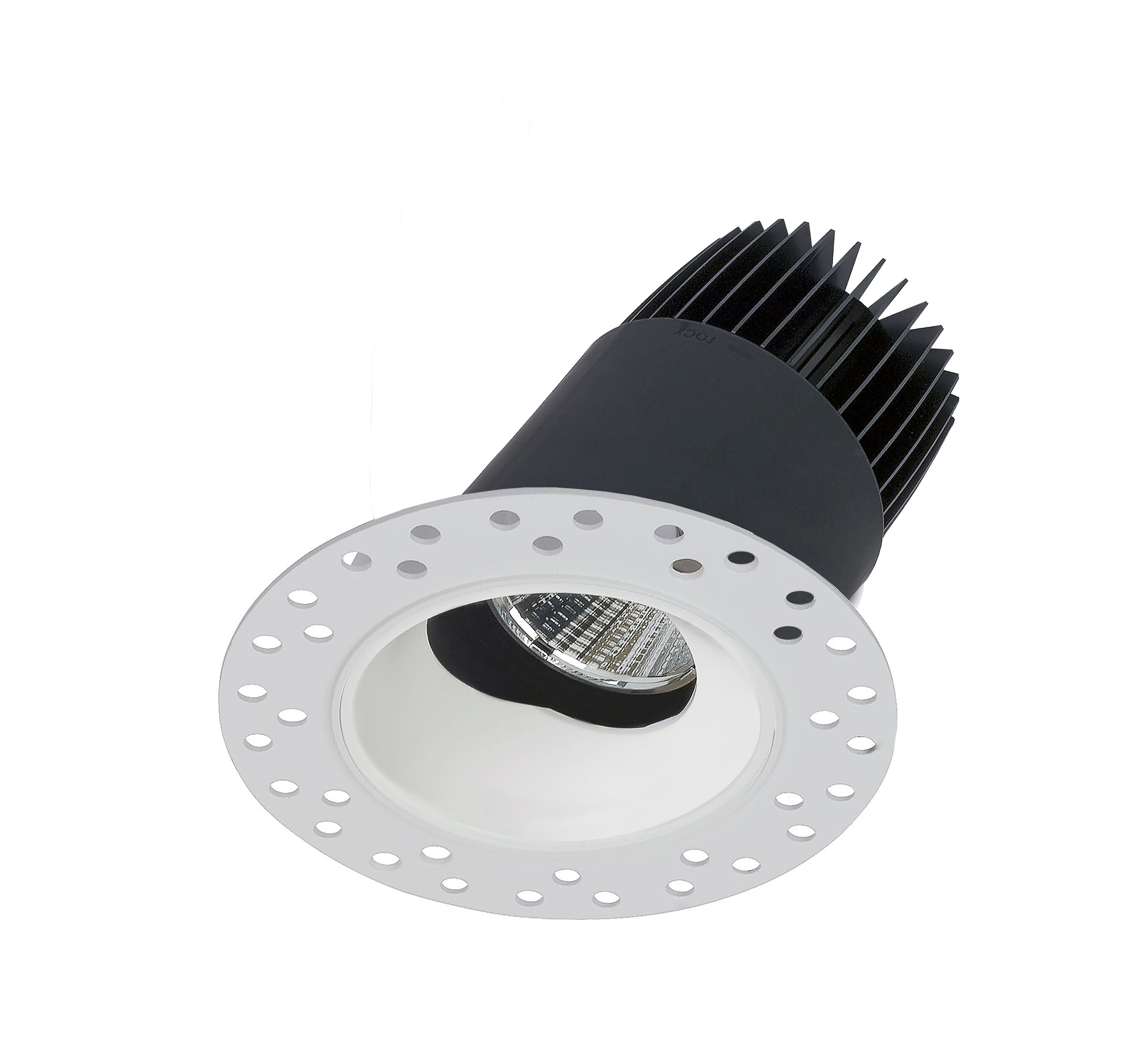

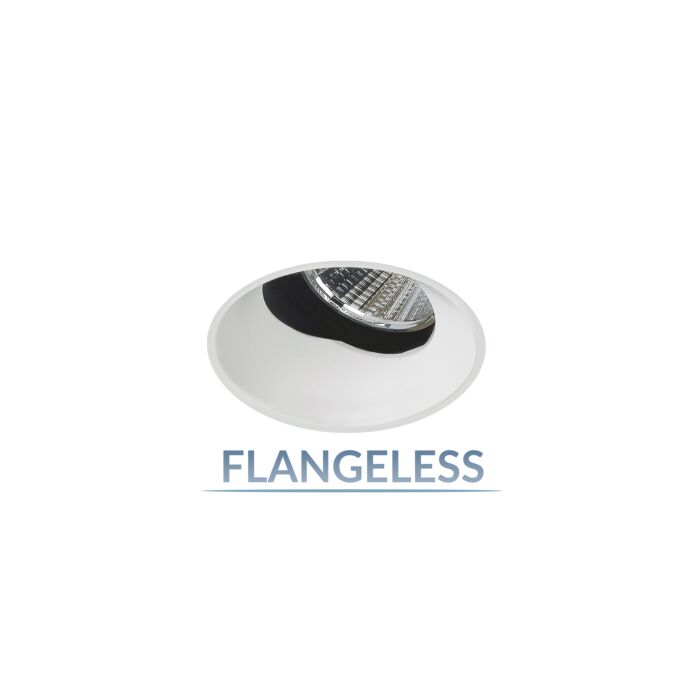

LRXLD2571 : 2.5" Recessed LED Round Flangeless 40° Adjustable Accent, 1000LM - 2400LM (15W-30W)

2.5" Recessed LED Round Flangeless 40° Adjustable Accent, 1000LM - 2400LM (15W-30W)
2.5" Recessed LED Round Flangeless 40° Adjustable Accent, 1000LM - 2400LM (15W-30W) 2.5" Recessed LED Round Flangeless 40° Adjustable Accent, 1000LM - 2400LM (15W-30W) 2.5" Recessed LED Round Flangeless 40° Adjustable Accent, 1000LM - 2400LM (15W-30W) 2.5" Recessed LED Round Flangeless 40° Adjustable Accent, 1000LM - 2400LM (15W-30W)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Description

Perfect for ambient and task downlighting in low to medium height ceilings and high-end residential and commercial applications.

NOTE: For commercial applications with 1/2" Pipe or Flex-Conduit (LITON # PCT031) Fitting Adapter should be used. Consult Factory.

Benefits

  • 1000lm (15W), 1400lm (22W) and 2400lm (30W) lumen packages
  • Equivalent to 75W MR16 Output
  • Ideal where space is limited and energy savings is important
  • Field Replaceable Beam Spread Optics
  • Lockable Tilt
  • 0.5% for 1000lm (-L09), 5% dimming for 1400lm (-L14) and 2400lm (-L24)
  • Multiple Wireless Control Options

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Chicago Plenum
  • Damp Location
  • Dead Front - Non-Conductive
  • Energy Star Qualified
    ?

    Energy Star Qualified

    LITON Fixtures that have earned the ENERGY STAR certification deliver exceptional features, while using less energy. Saving energy helps you save money on utility bills and protect the environment by reducing greenhouse gas emissions in the fight against climate change. The Part Numbers Listed Here can be found on the Energy Star website. Items with "X" refer to multiple finishes/options available. If you have trouble finding a part please email [email protected].

  • ETL Listed
  • US Assembled
  • Sloped Ceiling
  • Title 24
  • Dedicated LED
  • Adjustable
  • Ambient Lighting
  • Downlight
  • 1-Accessory
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

1 Not field changeable.
2 Warm Dimming (-TWD) only available for 1000lm (-L09) lumen package.
3 (-SUN-RMT) sensor sent with mounting clips for existing ceiling applications.
4 (-TWD) Warming Dimming, (-L14) 1400lm and (-L24) 2400lm are not available for both LHLD25IC-FRM (IC) or LHFRLD25 (Fire-Rated).
5 Achieved through a filter at 600 aperture level.
6 (-B10) Beam Spread, (-T17) 1700K color temperature, (-DEC) Lutron EcoSystem, and (-TWD) Warm Dimming options are not available for 2400lm (-L24) lumen package.
7 (-L09), and (-L14) lumen packages with 120V/277V UniDim™ (UE-DUN) driver option are Energy Star Certified.
8 Special order, minimum order. Lead times apply. Consult factory for emergency battery options.
9 DC: Diecast (Paint applied finish), PC: Polycarbonate (Vacuum metalized finish).

LRXLD2521, LRXLD2521J, LRXLD2571 and LHQLD25-FRM for (-L14) 1200lm is available with LFB2012 for Fire-Rated Application.
NOTE: For commercial applications with 1/2" Pipe or Flex-Conduit (LITON# PCT031) Fitting Adaptor should be used. Consult Factory.

Dimming Diagrams

Energy Star Qualified Items

(-L09), and (-L14) lumen packages with 120V/277V UniDim™ (UE-DUN) driver option are Energy Star Certified.



Title 24/JA8 Compliant Items

LRXLD2571_-L09-B_
LRXLD2571_-L09-B_-T27
LRXLD2571_-L09-B_-T35
LRXLD2571_-L09-B_-T40
LRXLD2571_-L14-B_-T27UE-DUN
LRXLD2571_-L14-B_-T35UE-DUN
LRXLD2571_-L14-B_-T40UE-DUN
LRXLD2571_-L14-B_UE-DUN
