| LRXLD1521 : 1.5" Lutron Athena Recessed Trimless LED Downlight

1.5" Lutron Athena Recessed Trimless LED Downlight
1.5" Lutron Athena Recessed Trimless LED Downlight 1.5" Lutron Athena Recessed Trimless LED Downlight 1.5" Lutron Athena Recessed Trimless LED Downlight 1.5" Lutron Athena Recessed Trimless LED Downlight 1.5" Lutron Athena Recessed Trimless LED Downlight
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Description

1.5" diameter Micro Recessed LED Trimless Downlight suitable for High-End Residential, Architectural, and Commercial use. Provides exceptional ambient, accent, and task lighting in low to medium height ceilings. Also available with wallwash and adjustable tilt option up to 25°

Benefits

  • Up to 12W, 1000lm
  • Integral or Remote Driver, Remote Panel Box Options
  • Airtight Lens Wet Location Option

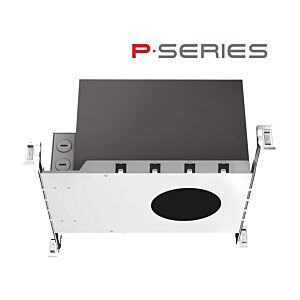

  • Type IC or IC/1-Hour Fire-Rated Frame Options
  • US Assembled
  • Remote Emergency Backup (40W)
  • Quick Ship Options

POWER SUPPLY ORDERED SEPARATELY



Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • ETL Listed
  • IC Rated
  • US Assembled
  • Title 24
  • Wet Location
  • Downlight
  • 1-Accessory
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Video

SEE REQUIRED DRIVER OPTIONS BELOW

1 Special order. Minimum order, extended lead time may apply. Consult Factory.
2 Maximum ceiling thickness is 3/4".
3 (-B15) Beam spread option not available with (-HO) High output module.
4 (-HO) High Output Module only available with -C030-HO (1000lm, 12W) and -C020-HO (700lm, 9W).
   (-TWD) Warm Dimming only available with (-HO) High Output Module.
5 LD5RMTJBX (UE-DUN) only available with fixtures in multiples of 2, up to 4 total fixtures; not compatible with (-HO) High output module.
6 Type IC Frame and Fire-Rated Frame only compatible with LD5INTJBX with -C020-HO (700lm, 9W).

Description

LITON’s Lutron recessed downlights—including P-Series miniature downlights, C-Series recessed cans, and LumenBlast high-output downlights—are fully compatible with the Lutron Athena lighting control system. These architectural-grade fixtures deliver tunable white, color-changing capabilities, and precision dimming across various form factors. With hybrid wired/wireless options and centralized control, they offer performance and flexibility for dynamic, design-driven environments.

Best for: Museums, retail spaces, and commercial interiors that require customizable Lutron LED downlights with advanced lighting control features.

Dimming Diagrams
