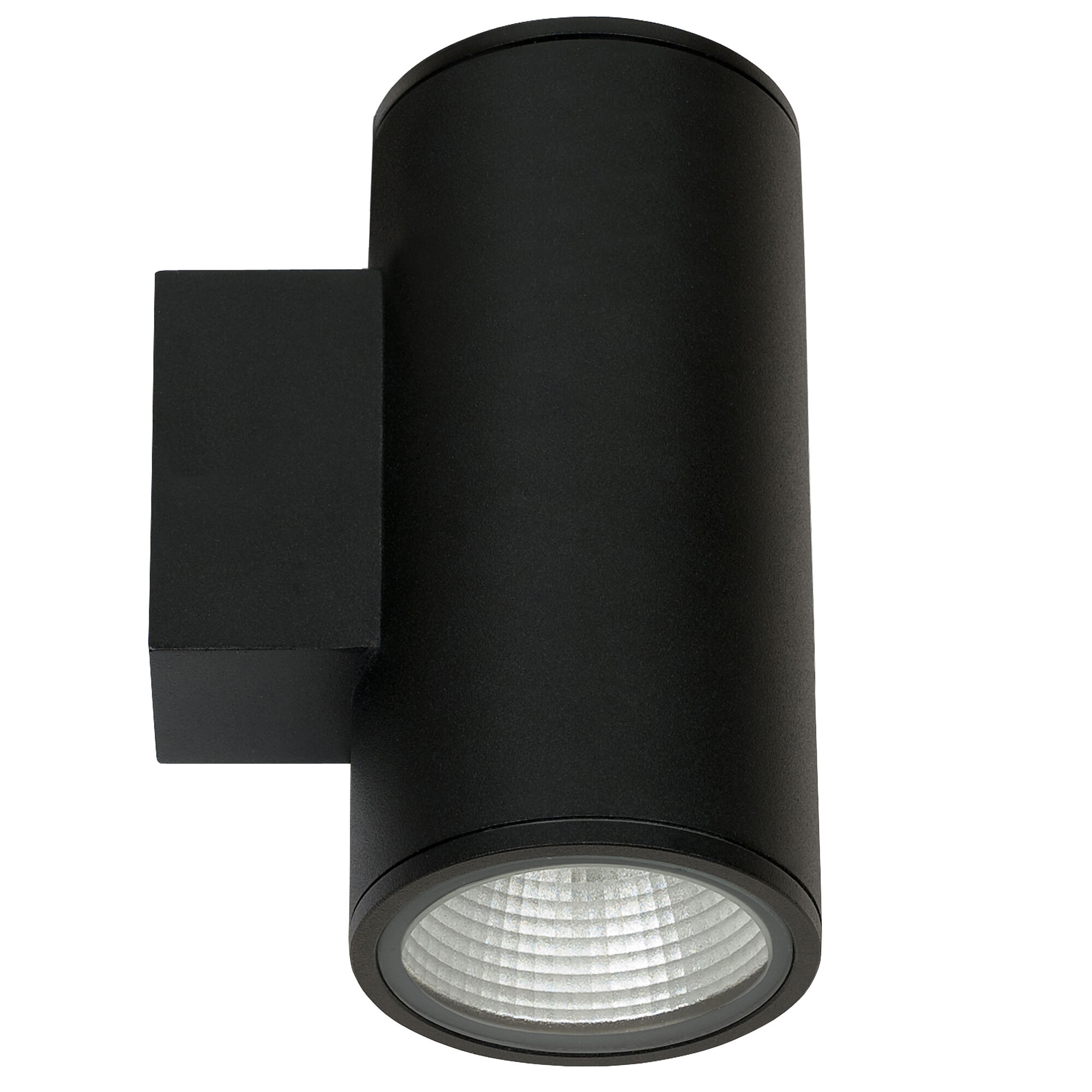

|WD2340 : 2 Direction Casambi LED Wall Mount Cylinder

2 Direction Casambi LED Wall Mount Cylinder
2 Direction Casambi LED Wall Mount Cylinder 2 Direction Casambi LED Wall Mount Cylinder 2 Direction Casambi LED Wall Mount Cylinder 2 Direction Casambi LED Wall Mount Cylinder 2 Direction Casambi LED Wall Mount Cylinder 2 Direction Casambi LED Wall Mount Cylinder 2 Direction Casambi LED Wall Mount Cylinder 2 Direction Casambi LED Wall Mount Cylinder 2 Direction Casambi LED Wall Mount Cylinder 2 Direction Casambi LED Wall Mount Cylinder 2 Direction Casambi LED Wall Mount Cylinder 2 Direction Casambi LED Wall Mount Cylinder
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Description

This WD2 Series Double-directional wall luminaire can be used in both interior and outdoor settings. Typical locations are in commercial and retail spaces that contain walls and/or columns that require directional lighting. Dual reflector design allows for direct and indirect lighting for a single fixture.
Emergency LED Battery Back-up available, remotely mounted adjacent to housing by installer. When AC power fails,the device immediately switches to the emergency mode, operating the LEDs for a minimum of 90 minutes. Remote test switch, plate cover and junction box included. Optional Generator Transfer Device switches the driver to auxiliary generator power during the loss of normal AC power, (recommended for applications requiring individual circuit switching).

Benefits

  • Uniform, Low Glare Illumination
  • Singular COB light source
  • New Integral Emergency Option
  • Unidim dimming option with 2-wire Incandescent, 3-Wire ELV or 0-10V controls
  • 13' Mtg. Ht., 22' O.C. Spacing (1000 lumen package)
  • 25' Mtg. Ht., 22' O.C. Spacing (1500 lumen package)
  • 5-Year Limited Warranty
  • Photocell Available
  • Available with Type IV/Forward Throw Optics
  • Multiple Wireless Control Options
  • IK08 Rated



Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Cold Weather
  • Emergency
  • ETL Listed
  • IK08 Rated
  • Marine Grade
  • Outdoor
  • US Assembled
  • Tamper Resistant
  • Wet Location
  • Dedicated LED
  • Downlight
  • Uplight
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

1 Special Order Finish. Minimum order quantity (MOQ) applies. Orders less than MOQ are subject to a special paint set-up fee for the quantity ordered. Extended lead times may apply. Consult Factory.
2 Special Order. Minimum order quantity (MOQ), extended lead time may apply. Consult Factory.
3 Standard driver minimum starting temperature is -10°C / 14°F.
4 Cold Weather Start (-CW) Starting Temperature -30°C / -22°F.
5 Blank EM enclosure available for non-EM units to provide a seamless design aesthetic when EM enabled products are installed.
6 (-EMB-SD) and (-EMB-FC) are not compatible with (-CW) option.
7 Remote Power Supplies and Control Gear required. Available with Wireless Bluetooth Casambi or DMX 512 control. Consult Factory for Details.
8 (-LVR) Hex-Cell Louver is not compatible with CleanBeam Options (-CBU10), (-CBU15), (-CBU35), (-CBD10), (-CBD15), (-CBD35).
9 Special Order. Must be ordered with -EMB-FC.
10 Special Order. Must be ordered with -EMB-BLANK.

347 Input with 0-10V available. Consult Factory for details and lead time.

Energy Efficient Chip-On-Board (COB) Singular LED Light source provides for smooth uniform light output, eliminating the multiple shadow effect seen by multiple LED source products.

Binned with 3-Step MacAdam Ellipses as recommended by Ansi Standard. Available in 2700k, 3000k, 3500k, 4000k, 5000k, RGBW, and 590nm Amber.

Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.

Description

LITON’s Casambi wall-mounted luminaires combine architectural form with functionality. These fixtures offer edge lighting, accent illumination, and corridor lighting, all managed through Casambi’s wireless app interface for intuitive control.

Best for: Hospitality and commercial spaces needing elegant Casambi wall lighting with programmable control and visual consistency.

Dimming Diagrams
