Description

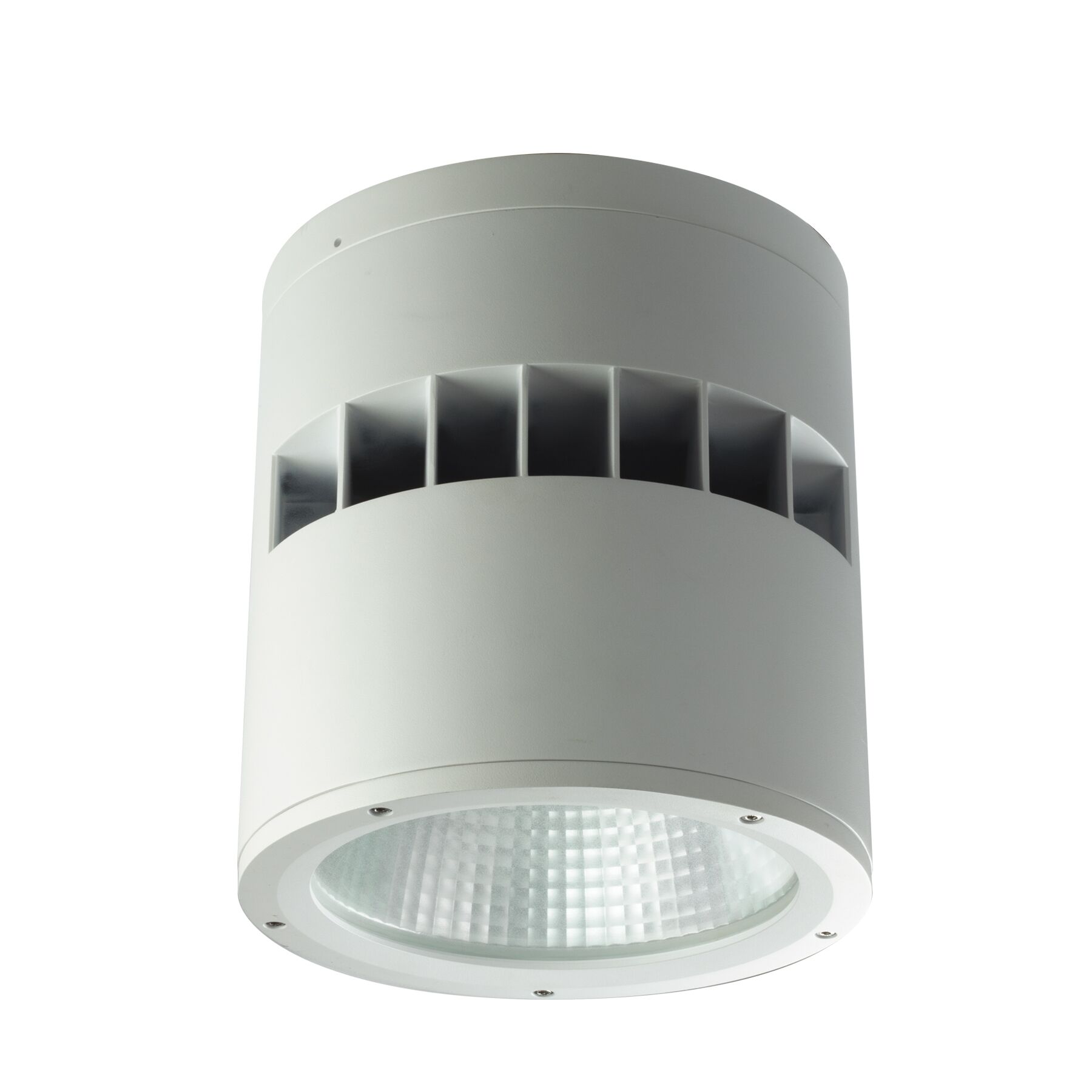

Architectural-grade cylinder pendant LED downlight housing combines energy efficiency with powerful lumen output. Perfect for public spaces that have high ceilings.

Benefits

  • 120V/277V Input Standard, 347V Available, Consult Factory
  • UniDim™ Universal LED Dimming Option Works with 0-10V, ELV and Incandescent Controls
  • Fixture Housing, <12lbs
  • Wide spectrum of Color Temperatures and CRI

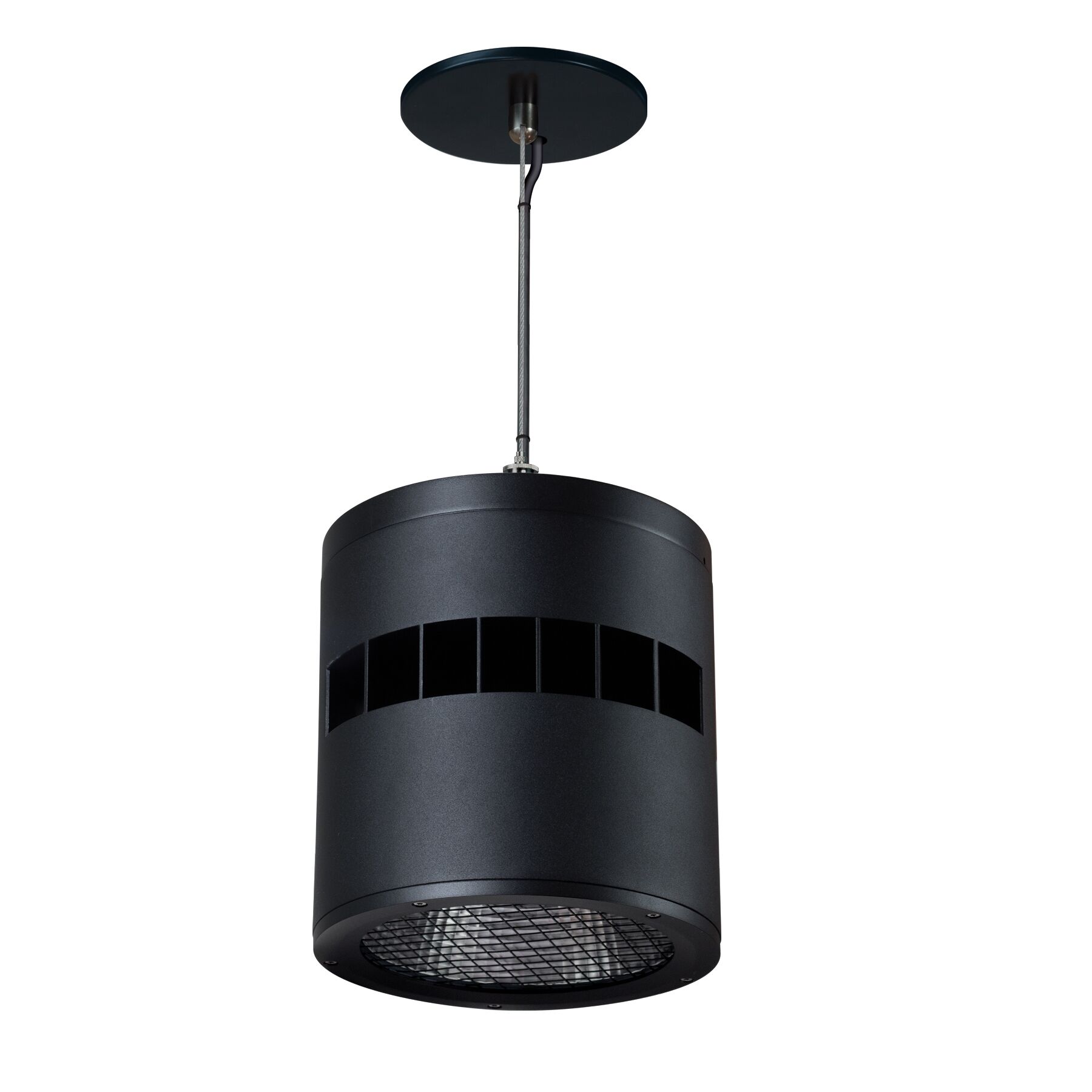

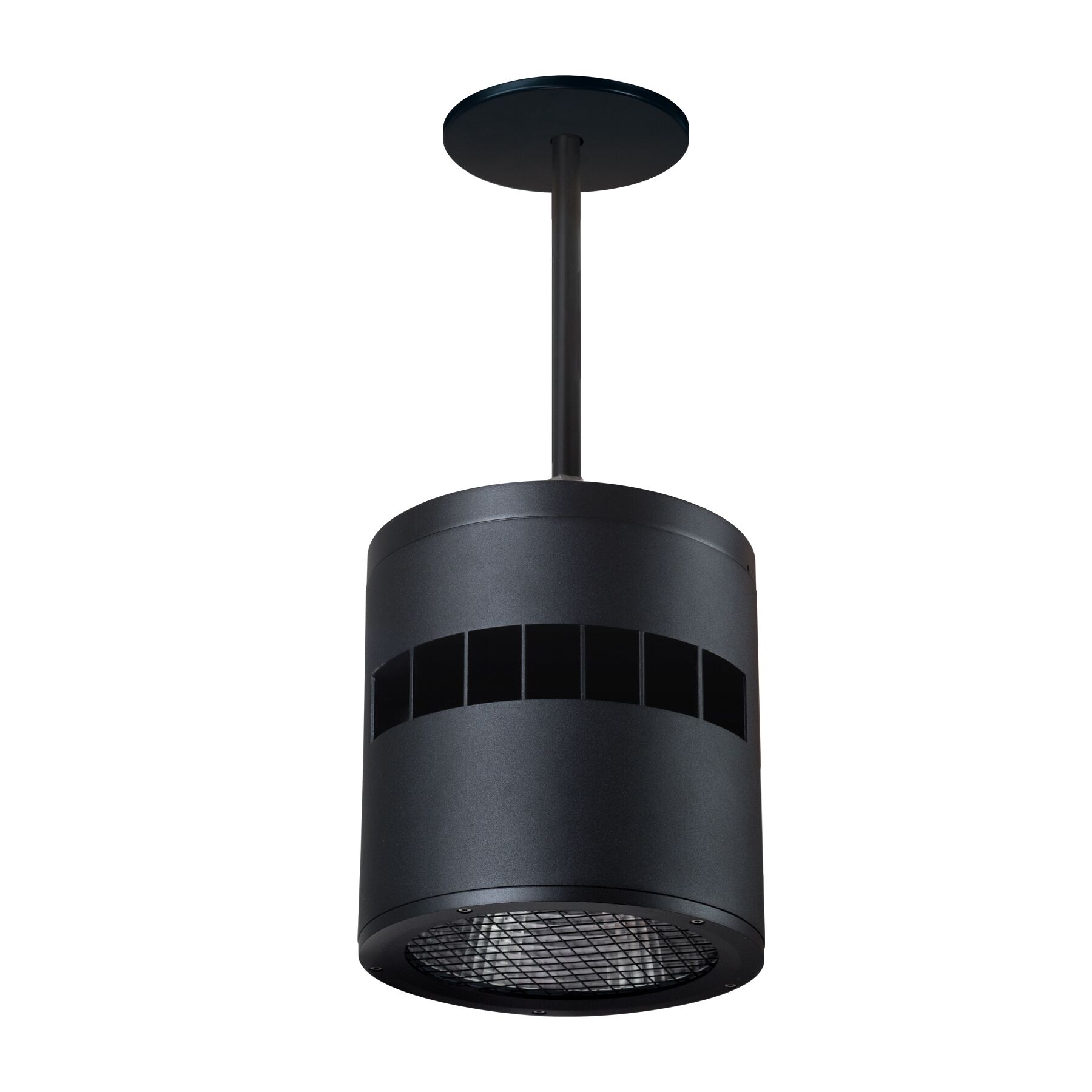

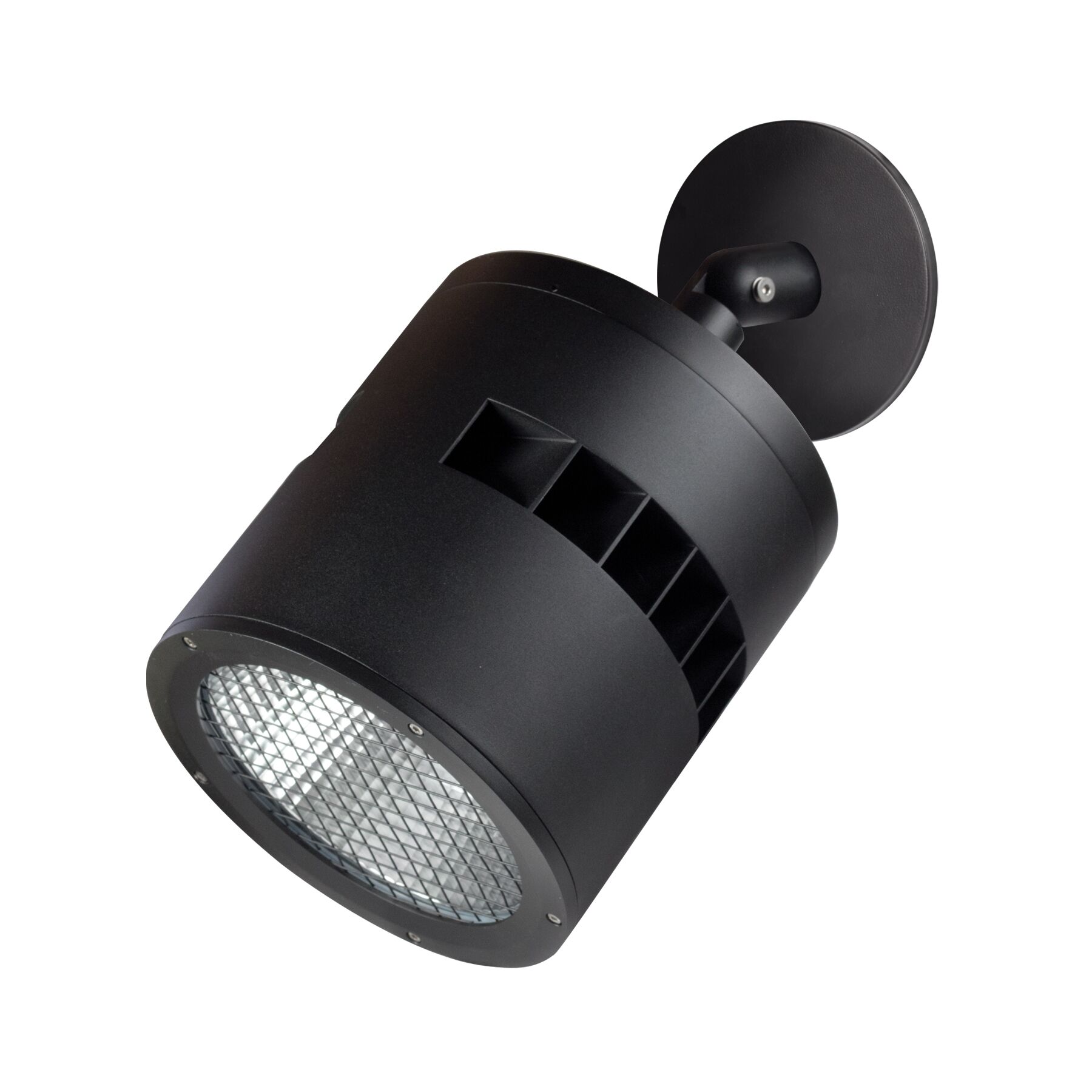

  • Multiple Mounting via Stem, Cable and Elbow Joint
  • Tuneable White and Warm-Dim Options Available
  • IP65
  • NEW EM options available for Pendant Mounts only
  • Multiple Wireless Control Options

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • ETL Listed
  • US Assembled
  • Wet Location
  • Downlight
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

1 Lumens are nominal delivered lumens. See Photometry page for exact values.
2 Special Order. Minimum order quantity (MOQ), extended lead time may apply. Consult Factory.
3 Stem and cable are field adjustable. See instructions.
4 (-T50) only available in 80 CRI (-C80).
5 (UE-DUN) only available with (030), (040), (070), (075), and (100) Lumen packages.
6 (UE-D10P1) not available with (160) Lumen package.
7 (-B15) & (-B25) only available with (030), (040), (050), (060), and (070) Lumen packages.
8 (-C80) not available with (-T35) and (-T40) for (030), (040), (050), (060), and (070) Lumen packages.

347 Input with 0-10V available. Consult Factory for details and lead time.
Energy Efficient Chip-On-Board (COB) Singular LED Light source provides for smooth, uniform light output, eliminating the multiple shadow effect seen by multiple LED source products.
Binned with 3-Step MacAdam Ellipses as recommended by Ansi Standard. Available in 2700k, 3000k, 3500k, 4000k, 5000k.
Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.

Description

LITON’s Casambi cylinder fixtures, including Cylo, CyloPro adjustable models, and LumenCannon, combine bold architectural form with the power of Casambi wireless control. These surface-mounted luminaires offer directional and ambient lighting with tunable dimming, perfect for highlighting vertical planes or accentuating design features.

Best for: Lobbies, corridors, and galleries needing stylish Casambi cylinders with wireless adjustability and control flexibility.

Dimming Diagrams
