CH6QLS : 6" C • Series Square Lumen/ColorSelect New Construction 1300lm - 3700lm (17W-55W)

6" C • Series Square Lumen/ColorSelect New Construction 1300lm - 3700lm (17W-55W) 6" C • Series Square Lumen/ColorSelect New Construction 1300lm - 3700lm (17W-55W)
6" C • Series Square Lumen/ColorSelect New Construction 1300lm - 3700lm (17W-55W)
6" C • Series Square Lumen/ColorSelect New Construction 1300lm - 3700lm (17W-55W) 6" C • Series Square Lumen/ColorSelect New Construction 1300lm - 3700lm (17W-55W) 6" C • Series Square Lumen/ColorSelect New Construction 1300lm - 3700lm (17W-55W) 6" C • Series Square Lumen/ColorSelect New Construction 1300lm - 3700lm (17W-55W) 6" C • Series Square Lumen/ColorSelect New Construction 1300lm - 3700lm (17W-55W) 6" C • Series Square Lumen/ColorSelect New Construction 1300lm - 3700lm (17W-55W)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Description

Architectural/Commercial-grade recessed lensed LED downlight housing with Lumen/ColorSelect switch offers added flexibility for optimal light output and ambience in commercial and architectural spaces with medium to high ceilings.



Benefits

  • Three LumenSelect options up to 2000lm, 3300lm, or 3700lm

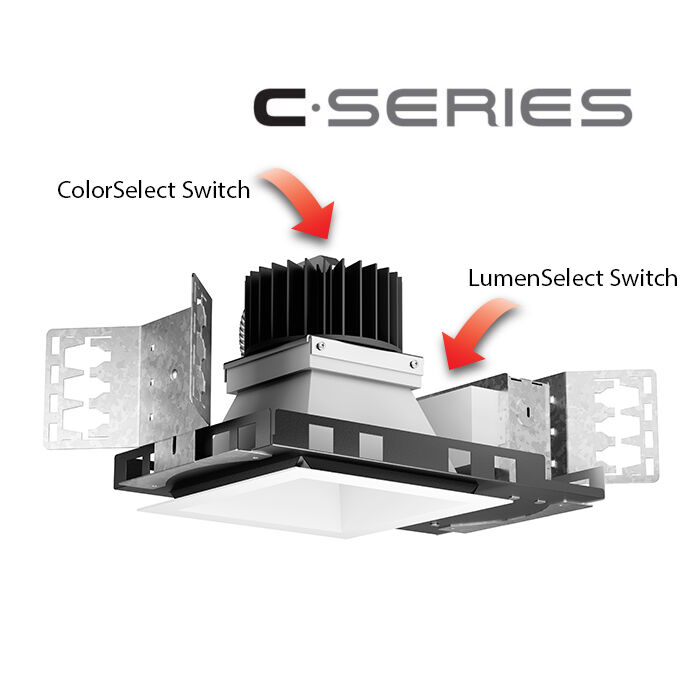

  • ColorSelect 3000K, 3500K, 4000K (84CRI) switch
  • Twist and lock reflector for quick access to LED lamp array
  • Heavy-duty seamless die-cast reflector
  • Soft even lumen distribution
  • No visible screws or hardware
  • Multiple Wireless Control Options

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Chicago Plenum
  • Damp Location
  • Emergency
  • Energy Star Qualified
    ?

    Energy Star Qualified

    LITON Fixtures that have earned the ENERGY STAR certification deliver exceptional features, while using less energy. Saving energy helps you save money on utility bills and protect the environment by reducing greenhouse gas emissions in the fight against climate change. The Part Numbers Listed Here can be found on the Energy Star website. Items with "X" refer to multiple finishes/options available. If you have trouble finding a part please email [email protected].

  • ETL Listed
  • IC Rated
  • US Assembled
  • Wet Location
  • Dedicated LED
  • Ambient Lighting
  • Downlight
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

1 Housing must match corresponding Reflector in column to right.
2 Only available for EM Housings.
3 (ICA) is only available on 1300lm (17W), and 1700lm (22W). (CH6QLS1320 2000lm (28W), CH6QLS2333, and CH6QLS2737 are Non-IC Rated.)
4 Check Wiring Diagrams.
5 Special Order.
6 (-SUN-RMT) sensor sent with mounting clips for existing ceiling applications.

Dimming Diagrams

Energy Star Qualified Items

•CRQ6L22SW-T30
•CRQ6L22SW-T35
•CRQ6L22SW-T40
•CRQ6L36SW-T30
•CRQ6L36SW-T35
•CRQ6L36SW-T40
