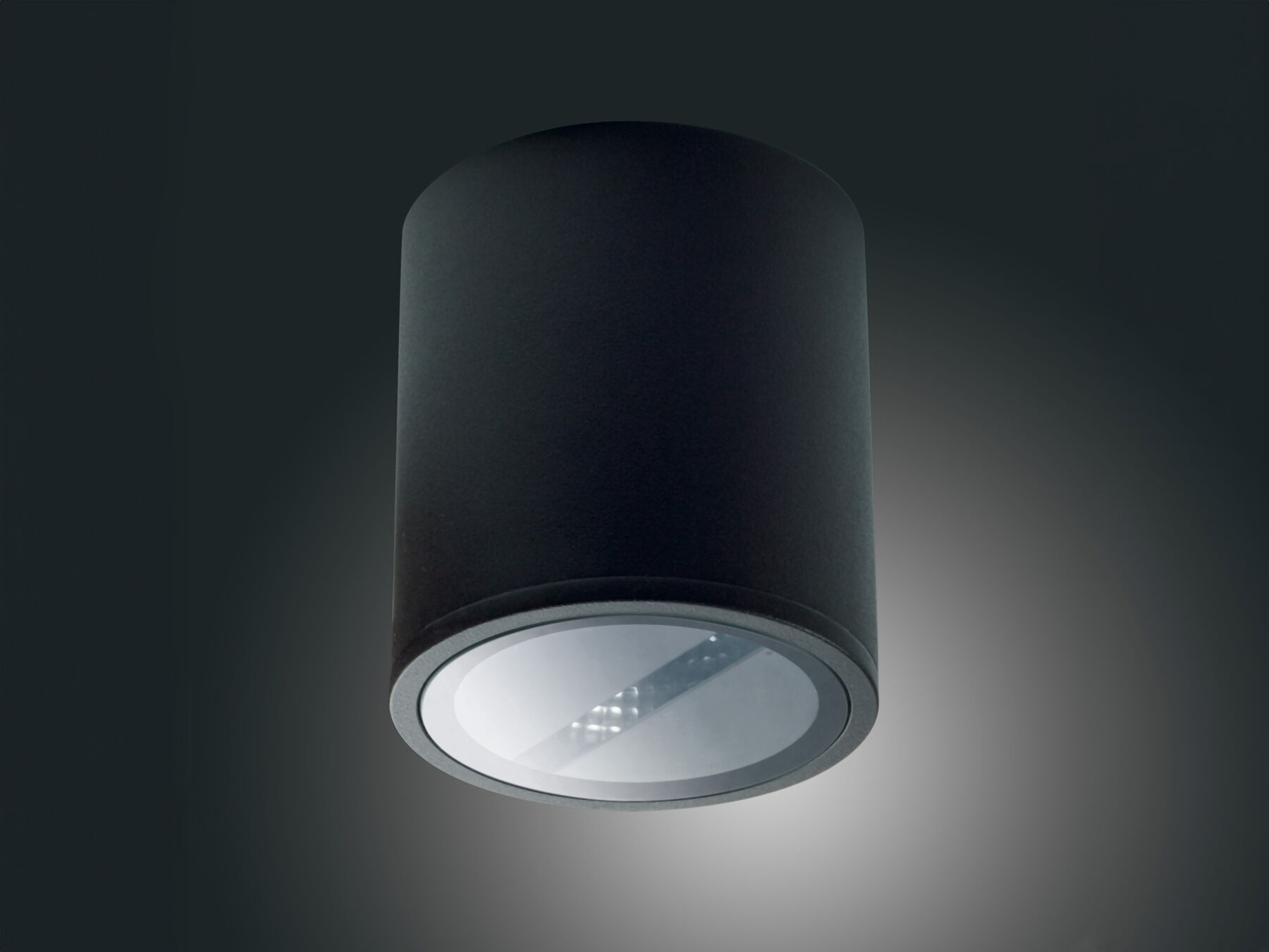

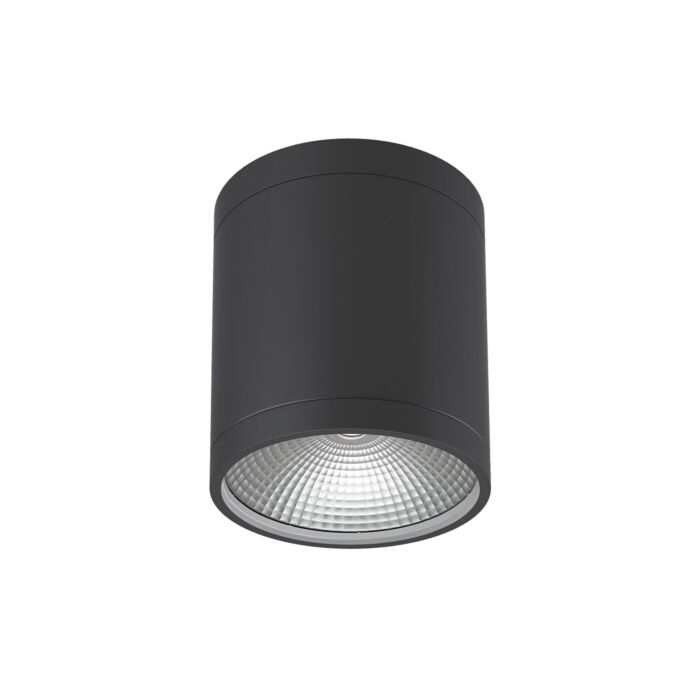

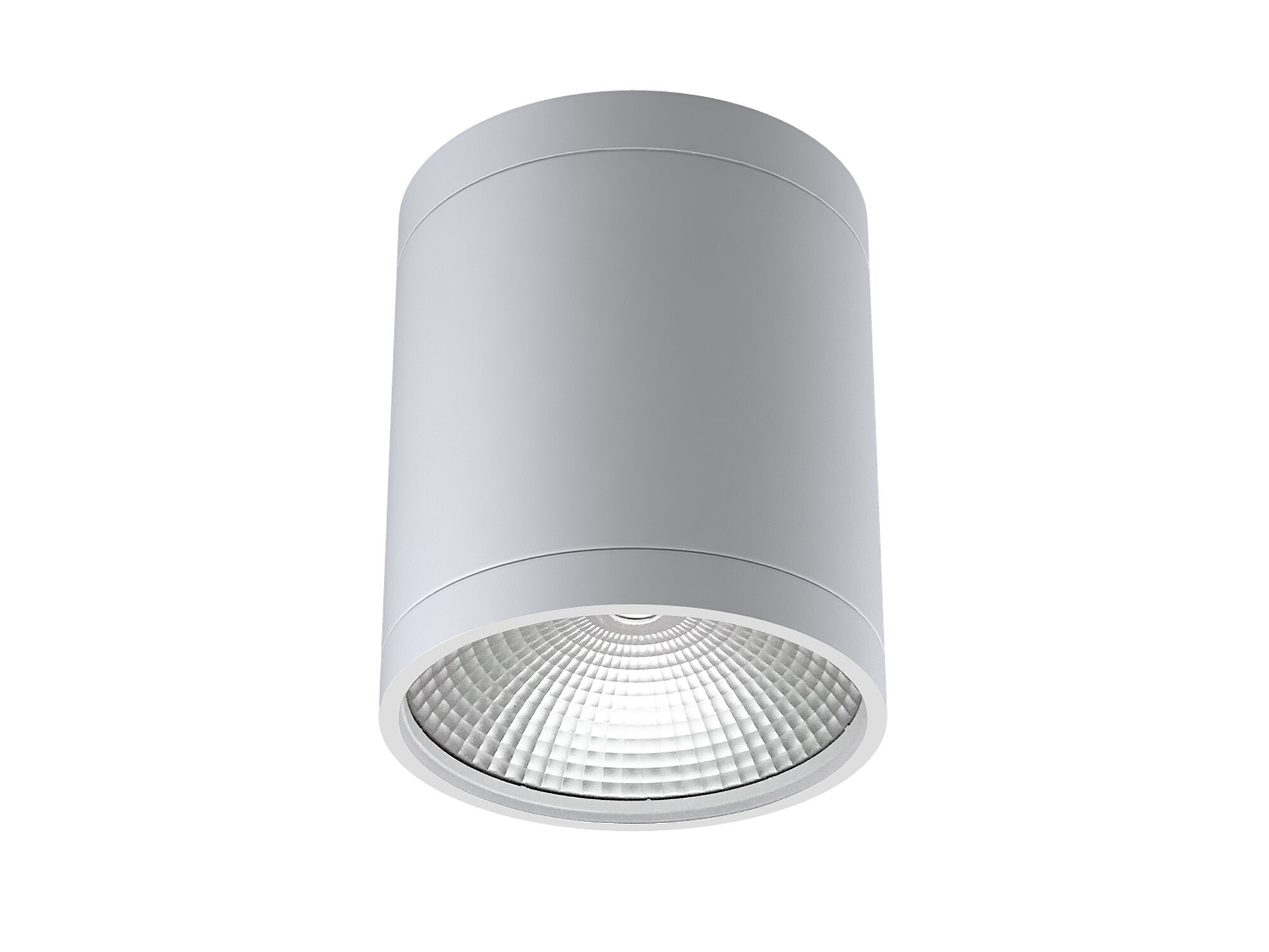

DL340 : 4" Round Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W)

4" Round Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W)
4" Round Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W) 4" Round Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W) 4" Round Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W) 4" Round Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W) 4" Round Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W) 4" Round Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W) 4" Round Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W) 4" Round Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W) 4" Round Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W) 4" Round Ceiling Downlight (IP65) 1000lm - 1500lm (10W-15W)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Description

This DL Series covered ceiling mount downlight can be used for surface ceiling or pendant mount in both interior and outdoor settings. Typical locations are in commercial and retail spaces that require lighting from above. Dark Sky compliant.

Benefits

  • Energy efficient, low glare LED Chip-On-Board light engine
  • Beam spreads include NS, SP, FL, WFL and Pencil Beam
  • Wall Wash Optics available
  • Emergency back-up available
  • Integral Surface J-Box Option
  • 5-Year Limited Warranty
  • Multiple Wireless Control Options
  • IK08 Rated

"Now with Integral Emergency Option!"

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Cold Weather
  • Dark Sky Compliant
  • Emergency
  • ETL Listed
  • IK08 Rated
  • Marine Grade
  • Outdoor
  • US Assembled
  • Tamper Resistant
  • Wet Location
  • Dedicated LED
  • Ambient Lighting
  • Downlight
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

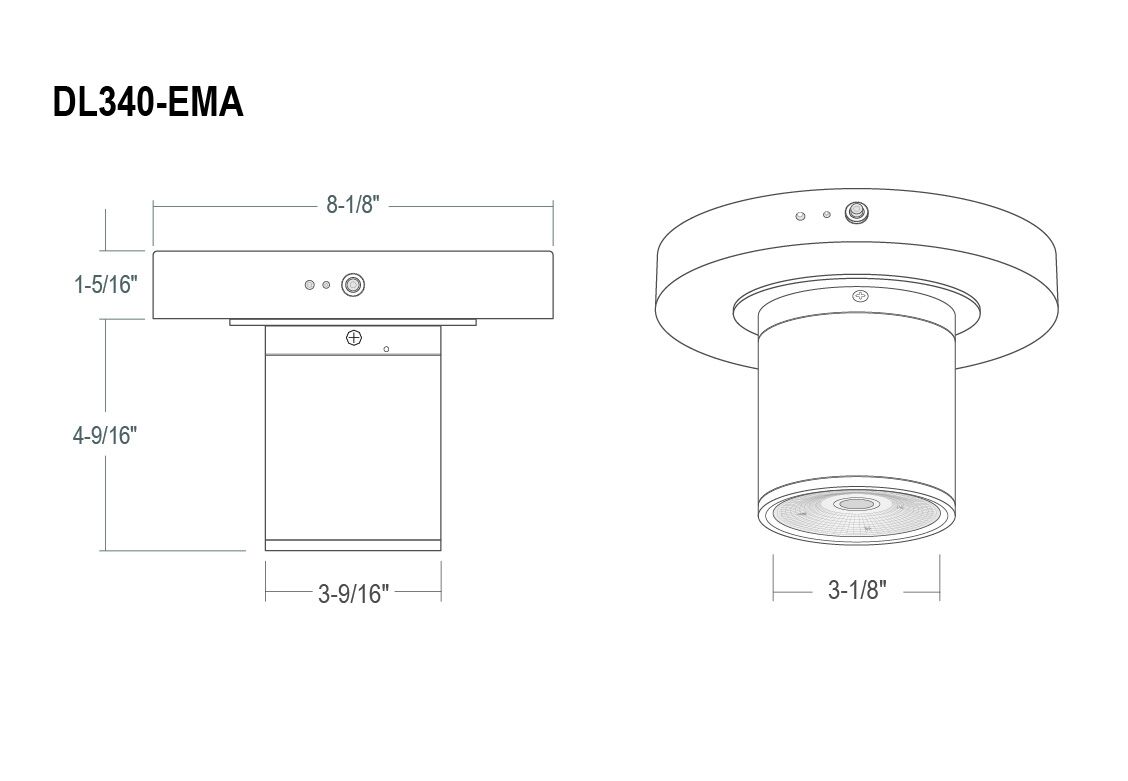

1 -EMA and -EMA/PM for 15W max.
2 Special Order. Minimum order, extended lead time may apply. Consult factory.
3 Starting temperature -30°C/-22°F; see p. 7.
4 Available with wireless Bluetooth or DMX control. Consult factory for details. Remote power supplies and control gear may be required.
5 See p.5 for breakdown of -JB options.
6 Standard option only available for Black (B), and White (W) finish. For alternate finishes; contact factory for pricing. Extended lead time may apply.
7 (-EMA), (-EMA/PM), and (-JB) are not compatible with (-CW) option.

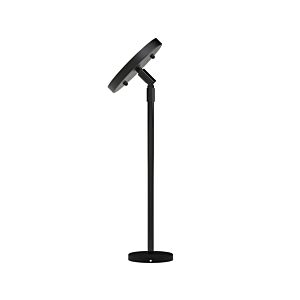

8 Must be ordered with Cable Mount (LPCMCDL) or Pendant Mount Accessory (LPCMDL4) shown on p. 6.
9 347V Input with 0-10V Dimming available. Consult factory for lead times.
10 Special Order Finish. Minimum order quantity (MOQ) applies. Orders less than MOQ are subject to a special paint set-up fee for the quantity ordered. Extended lead times may apply. Consult Factory.

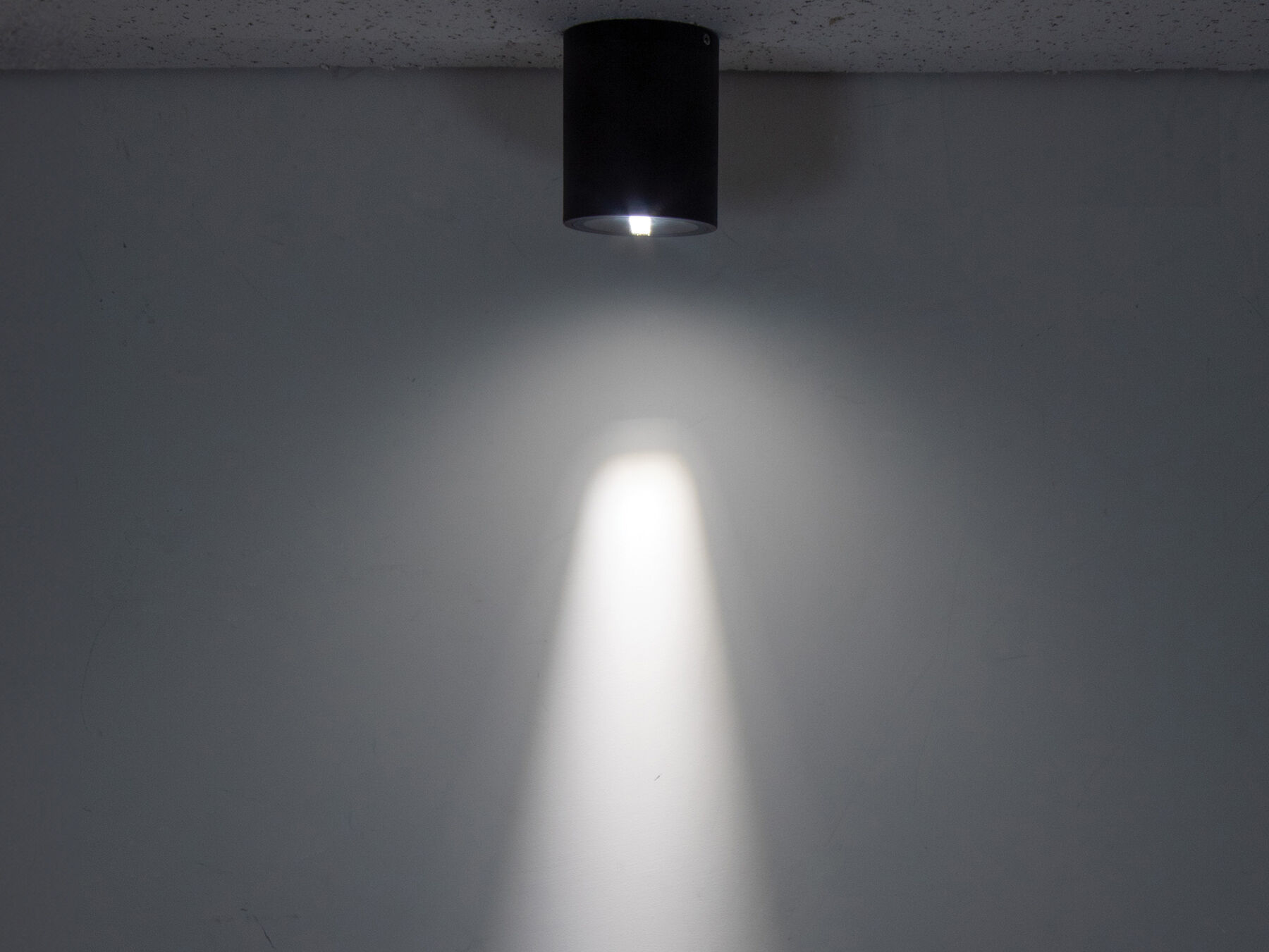

11 (-LVR) Hex-Cell Louver is not available with CleanBeam Option (-CB10).
12 Must be ordered with (-JB).
13 Special Order. (-EMA), (-EMA/PM), and (-JB) are not compatible with (-DBNT) option.
14 Special Order. Sent with surface mount JBOX to allow for direct-conduit entry.

Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.

Description

Energy efficient Chip-On-Board (COB) Singular LED Light Source provides for smooth uniform light output, eliminating the multiple shadow effect seen by multiple LED Source products. Binned with 4-step MacAdam ellipses as recommended by ANSI Standard. Available in 2700K, 3000K, 3500K, 4000K, 5000K and 5600K.

Combined Spec Sheets

Dimming Diagrams
