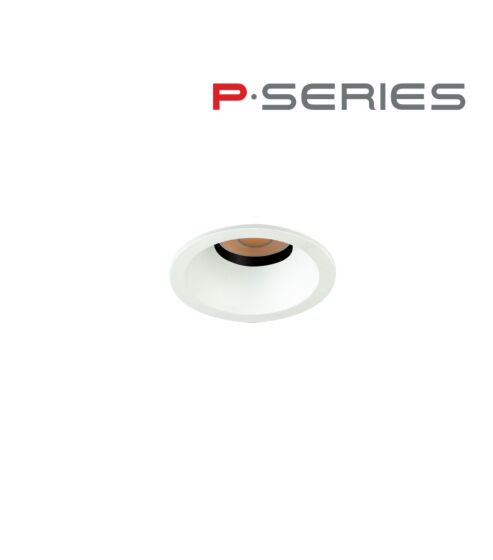

LRLD1521 : 1.5" P-Series Micro Recessed LED, Round Aperture Flanged Downlight, 500LM-1000LM (6W-12W)

1.5" P-Series Micro Recessed LED, Round Aperture Flanged Downlight, 500LM-1000LM (6W-12W)
1.5" P-Series Micro Recessed LED, Round Aperture Flanged Downlight, 500LM-1000LM (6W-12W) 1.5" P-Series Micro Recessed LED, Round Aperture Flanged Downlight, 500LM-1000LM (6W-12W) 1.5" P-Series Micro Recessed LED, Round Aperture Flanged Downlight, 500LM-1000LM (6W-12W) 1.5" P-Series Micro Recessed LED, Round Aperture Flanged Downlight, 500LM-1000LM (6W-12W) 1.5" P-Series Micro Recessed LED, Round Aperture Flanged Downlight, 500LM-1000LM (6W-12W)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Description

The 1.5" Micro Recessed LED Downlight's compact profile makes it perfect for low-ceiling and shallow-plenum environments in residential, hospitality, retail, and commercial spaces. Designed for precision lighting, it offers excellent beam control and low glare, making it well-suited for accent, task, or general lighting where visual comfort and architectural integration are paramount. Available in fixed, wall wash, and adjustable versions with up to 25° tilt for precise illumination and design flexibility.

Benefits

  • 1.5" Micro-Aperture
  • 1000lm (12W) option
  • Dichroic Color Lens Options available
  • Integral, Remote or Panel Box Power Supplies available
  • Quick Ship Options available
  • New Dim-to-Warm LED option available
  • New Multiple Wireless Control Options available
  • New Updated Pricing

POWER SUPPLY ORDERED SEPARATELY



Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Damp Location
  • ETL Listed
  • IC Rated
  • US Assembled
  • Sloped Ceiling
  • Title 24
  • Wet Location
  • Adjustable
  • Downlight
  • Wall Wash
  • 1-Accessory
  • Emergency Backup
  • Occupancy Sensor
  • QuickShip
    ?

    Quick Ship

    LITON’s Quick Ship catalog was designed for the purpose of expediting the shipping process on some of our most popular luminaires.

    Quick Ship items are available to ship within 10 business days on a first-come-first-served basis and upon request. In the event that our stock is depleted, Customer Service will provide you with an updated ship date. Quick Ship items that are received by LITON by 3PM Eastern Time will be shipped 10 business days from the date of the order. Orders received after 3PM on a weekend or holiday will be processed first thing the next business day.

    The Quick Ship commitment applies only to items listed on this webpage, so we ask that customers submit separate Quick Ship purchase orders that include ONLY Quick Ship items.

    LITON recommends that customers call to verify stock levels prior to placing orders as stock levels change daily. This program only applies to purchase orders of quantities of individual line items that are 50 pieces or less. All orders should be sent to our special Quick Ship orders email address, [email protected].

    LITON makes no guarantee on actual ship dates. Official ship dates are given after order placement.

  • 120V
  • 277V
  • 347V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Video

SEE REQUIRED DRIVER OPTIONS BELOW

1 Special order. Minimum order. Extended lead time may apply. Consult Factory.
2 Maximum ceiling thickness is 3/4" (to allow adjustability feature).
3 (-L06) must be ordered with Power Supply Lumen Option (-C020) and (-L10) must be ordered with Power Supply Lumen Option (-C030).
4 (-TWD) and (-T24) not available with (-B15) and only available with the Power Supply Lumen option of (-C030: 1000lm (12W)).
5 Beam Spread Options not available with Wallwash trims LRLD1573/LRXLD1573.
6 (-SUN-RMT) & (-AWN) sensors sent with mounting clips for existing ceiling applications. Consult Factory for Layout Assistance.
7 For power supply, LD5INTJBX, (-DCSM) only available for (-C030) option.
8 (-EMAC40) can be wired for loads (>40W) with 0-10V dimmable driver.
9 Custom Order. Minimum order, extended lead time may apply.  Only compatible with -C020: 600lm (8W). Trim must be selected with option -18V.
10 -18V LED option only compatible with (-C020) option on LD5RMTJBX for multiple fixtures (2-5) connected in series.
11 Consult Factory for custom pre-wired connector lengths.



Dimming Diagrams
