Description

Architectural/Commercial-grade recessed lensed LED downlight housing for medium to high ceilings in commercial and architectural spaces.

Benefits

  • Wide catalog of lumen and dimming options
  • Standard with 0-10V Dimming
  • Twist and lock reflector for quick access to LED lamp array
  • Heavy-duty seamless die-cast reflector
  • Soft even lumen distribution
  • No visible screws or hardware
  • New Lutron Athena Options Available
  • Multiple Wireless Control Options

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Chicago Plenum
  • Damp Location
  • Emergency
  • Energy Star Qualified
    ?

    Energy Star Qualified

    LITON Fixtures that have earned the ENERGY STAR certification deliver exceptional features, while using less energy. Saving energy helps you save money on utility bills and protect the environment by reducing greenhouse gas emissions in the fight against climate change. The Part Numbers Listed Here can be found on the Energy Star website. Items with "X" refer to multiple finishes/options available. If you have trouble finding a part please email [email protected].

  • ETL Listed
  • IC Rated
  • US Assembled
  • UL Listed
  • Wet Location
  • Dedicated LED
  • Ambient Lighting
  • Downlight
  • Wall Wash
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
  • 347V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

1 Housing must match corresponding Reflector in column to right.
2 All drivers are 120V/277V unless otherwise noted.
3 Only available for EM Housings.

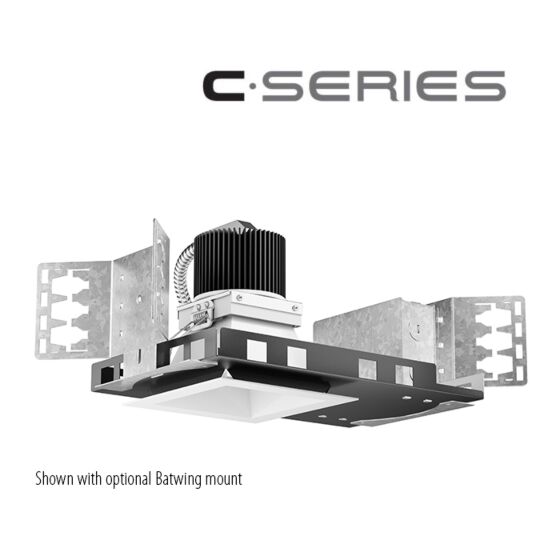

4 (-BWNG) option does NOT include Hanger Bars. Hanger Bars ordered separately
5 (ICA) is only available on CH4Q08, CH4Q10, and CH4Q18. (CH4Q28, CH4Q29, and CH4Q30 are Non-IC rated.)
6 (-347-D10) not available for CH4Q08.
7 Check Wiring Diagrams.
8 (-T50) not available for CH4Q29 and CH4Q30.
9 Special Order.
10 (-SUN-RMT) sensor sent with mounting clips for existing ceiling applications.

Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.

Dimming Diagrams

Energy Star Qualified Items

  • CR4QL17_-T30
  • CR4QL17_-T35
  • CR4QL17_-T40
