CH6IC : 6" C • SERIES IC LED Downlight 1800lm - 3600lm (16W - 39W)

6" C • SERIES IC LED Downlight 1800lm - 3600lm (16W - 39W) 6" C • SERIES IC LED Downlight 1800lm - 3600lm (16W - 39W)
6" C • SERIES IC LED Downlight 1800lm - 3600lm (16W - 39W)
6" C • SERIES IC LED Downlight 1800lm - 3600lm (16W - 39W) 6" C • SERIES IC LED Downlight 1800lm - 3600lm (16W - 39W) 6" C • SERIES IC LED Downlight 1800lm - 3600lm (16W - 39W) 6" C • SERIES IC LED Downlight 1800lm - 3600lm (16W - 39W)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Description

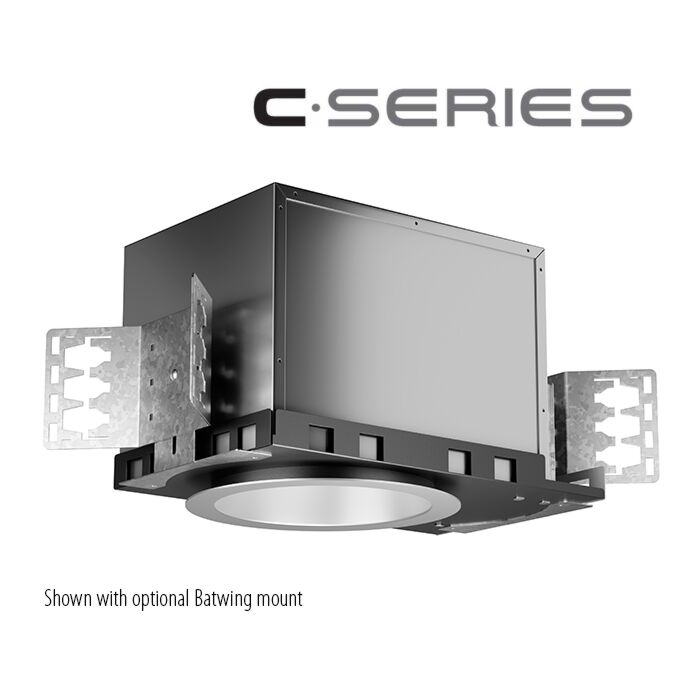

Architectural/Commercial-grade recessed lensed LED downlight housing for medium to high ceilings in commercial and architectural spaces.

Benefits

  • IC rated housing.
  • Twist and lock reflector for quick access to LED lamp array.
  • Heavy-duty Self-Flanged Reflector
  • Soft Even Lumen Distribution
  • No Visible Screws or Hardware
  • Multiple Wireless Control Options

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Chicago Plenum
  • Damp Location
  • Emergency
  • Energy Star Qualified
    ?

    Energy Star Qualified

    LITON Fixtures that have earned the ENERGY STAR certification deliver exceptional features, while using less energy. Saving energy helps you save money on utility bills and protect the environment by reducing greenhouse gas emissions in the fight against climate change. The Part Numbers Listed Here can be found on the Energy Star website. Items with "X" refer to multiple finishes/options available. If you have trouble finding a part please email [email protected].

  • ETL Listed
  • IC Rated
  • US Assembled
  • Wet Location
  • Dedicated LED
  • Ambient Lighting
  • Downlight
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

1 Housing must match corresponding Reflector in column to right.
2 All drivers are 120V/277V unless otherwise noted.
3 (UE-D10-EMA) must be ordered with Integral EM Switch Option (-EMA).
4 Special Order.
5 (-SUN-RMT) sensor sent with mounting clips for existing ceiling applications.
6 (-347-D10) not available for CH608IC.
7 Check Wiring Diagrams.
8 All EM/EMAC/EMAC347/GTD must have access above ceiling.
9 UE-D10-EMA is not compatible with -EM or -EMAC or -EMAC347 or -GTD.



Dimming Diagrams

Energy Star Qualified Items

/CR6L22_-T30
/CR6L22_-T35
/CR6L22_-T40
