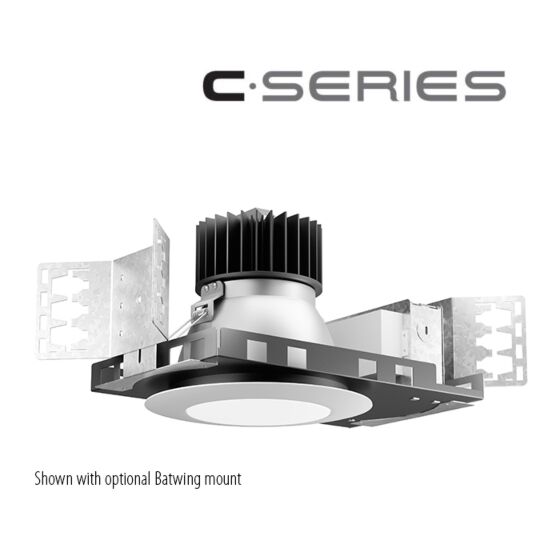

CR612 : 6" C • Series Dead Front Wet Location Downlight, 1000lm - 6000lm (8W-55W)

6" C • Series Dead Front Wet Location Downlight, 1000lm - 6000lm (8W-55W) 6" C • Series Dead Front Wet Location Downlight, 1000lm - 6000lm (8W-55W)

Description

Commercial-grade recessed lensed LED downlight housing that is an excellent choice for showers or bathrooms, producing a strong vibrant light without drawing attention to the source.

Benefits

  • Suitable for dry, damp, or wet locations
  • Albalite lens with non-conductive, dead-front flange ring produces strong, vibrant light
  • No visible screws or hardware
  • Multiple Wireless Control Options

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Chicago Plenum
  • Damp Location
  • Dead Front - Non-Conductive
  • Emergency
  • ETL Listed
  • IC Rated
  • US Assembled
  • UL Listed
  • Wet Location
  • Dedicated LED
  • Downlight
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V

Order Configurator

1 Reflector must match corresponding Housing in column immediately to the right.
2 ICA is only available for CH608, CH610, and CH618.
3 Special Order.
4 (-347-D10) not available on CH608.
5 (-SUN-RMT) sensor sent with mounting clips for existing ceiling applications.
6 Check Wiring Diagrams.
7 CH650/CR612L40 only available with UE-D10, UE-D10P1, and -347-D10 dimming options.
8 (-T27) not available for CH660/CR612L60.
9 (-T50) not available for CH655/CR612L53 and CH660/CR612L60.
