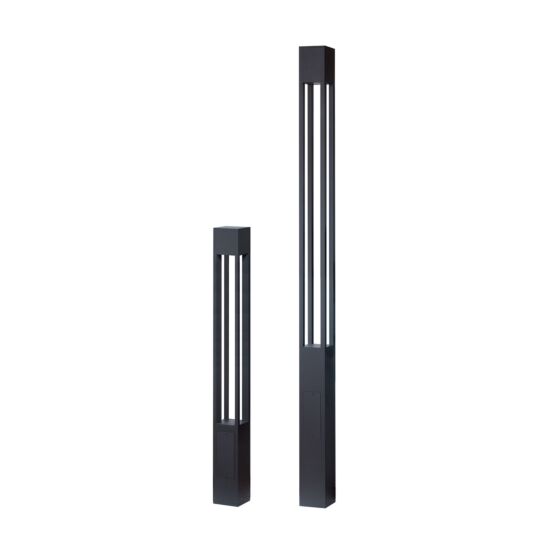

BL2QZ : LumenPole Square Bollard & Column 6" Open Frame - 59", 78", 98", 118" and 144" Height, 1600lm - 5000lm (20W - 90W)

LumenPole Square Bollard & Column 6" Open Frame - 59", 78", 98", 118" and 144" Height, 1600lm - 5000lm (20W - 90W) LumenPole Square Bollard & Column 6" Open Frame - 59", 78", 98", 118" and 144" Height, 1600lm - 5000lm (20W - 90W)
LumenPole Square Bollard & Column 6" Open Frame - 59", 78", 98", 118" and 144" Height, 1600lm - 5000lm (20W - 90W)
LumenPole Square Bollard & Column 6" Open Frame - 59", 78", 98", 118" and 144" Height, 1600lm - 5000lm (20W - 90W) LumenPole Square Bollard & Column 6" Open Frame - 59", 78", 98", 118" and 144" Height, 1600lm - 5000lm (20W - 90W) LumenPole Square Bollard & Column 6" Open Frame - 59", 78", 98", 118" and 144" Height, 1600lm - 5000lm (20W - 90W)
Compatible Items Similar Items

Downloads

Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Description

6" square LumenPole Light Columns and Bollards are designed for architectural relevance to intimate indoor and outdoor environments where pedestrian level illumination is required. The LED COB with reflector provides illumination downward on the ground to light walkways, public gathering spaces, gardens, along waterfronts and marinas and other public and private areas. Typical applications include residential, commercial, and retail.

Benefits

  • Dark Sky Compliant
  • U.S. Assembled
  • Tamper Resistant Hardware
  • IK08 Impact Rating
  • Integral Emergency Option
  • Optional Photocell Sensor
  • Quick Ship Options Available
  • 90 CRI Standard, 80 CRI on 5000K


Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Cold Weather
  • Dark Sky Compliant
  • Emergency
  • ETL Listed
  • IK08 Rated
  • Marine Grade
  • Outdoor
  • US Assembled
  • Tamper Resistant
  • Turtle Safe
  • Wet Location
  • Dedicated LED
  • Pathway Lighting
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
  • 347V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Video

1 Special order. Minimum Order. Extended lead time may apply. Consult Factory.
2 Special Order Finish. Minimum order quantity (MOQ) applies. Orders less than MOQ are subject to
a special paint set-up fee for the quantity ordered. Extended lead times may apply. Consult Factory.
3 Not rated for cold weather. Minimum fixture outdoor temperature, 0°C (32°F).
4 Starting Temperature -40°C/-40°F. Only available with (UE-DUN) control option.
5 Special Order. Sent with surface mount JBOX to allow for direct-conduit entry.
6 (-L40) through (-L70) Lumen option not available on (-59) 59" Height.
7 (-347-D10) option only available for Lumen options: (-L18), (-L24) and (-L30).
8 (UE-DUN) option only available for Lumen options: (-L18), (-L24), (-L30), and (-L34).
9 (-DIN) option only available for Lumen options: (-L18), (-L24), (-L30), (-L34), and (-L70).
10 (-EMAC) must be ordered with (UE-D10) or (UE-DUN) if ordering with Lumen option (-L30) or higher. Check Wiring Diagram on page 5.
11 (-TAM-LVR) option only available with Lumens (-L18).

Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.
Consult factory for possible additional options including: USB, AC outlet, speaker hubs, wireless, node mounting, PC/Motion sensor, 7-pin photocell receptacle (C136.41 compliant) only w/shorting cap, accepts standard twist-lock photocell or PC/Control Node for wireless dimming control.

Dimming Diagrams
