Description

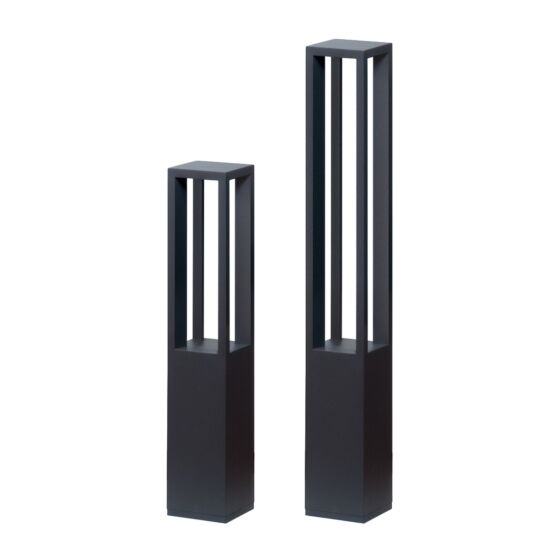

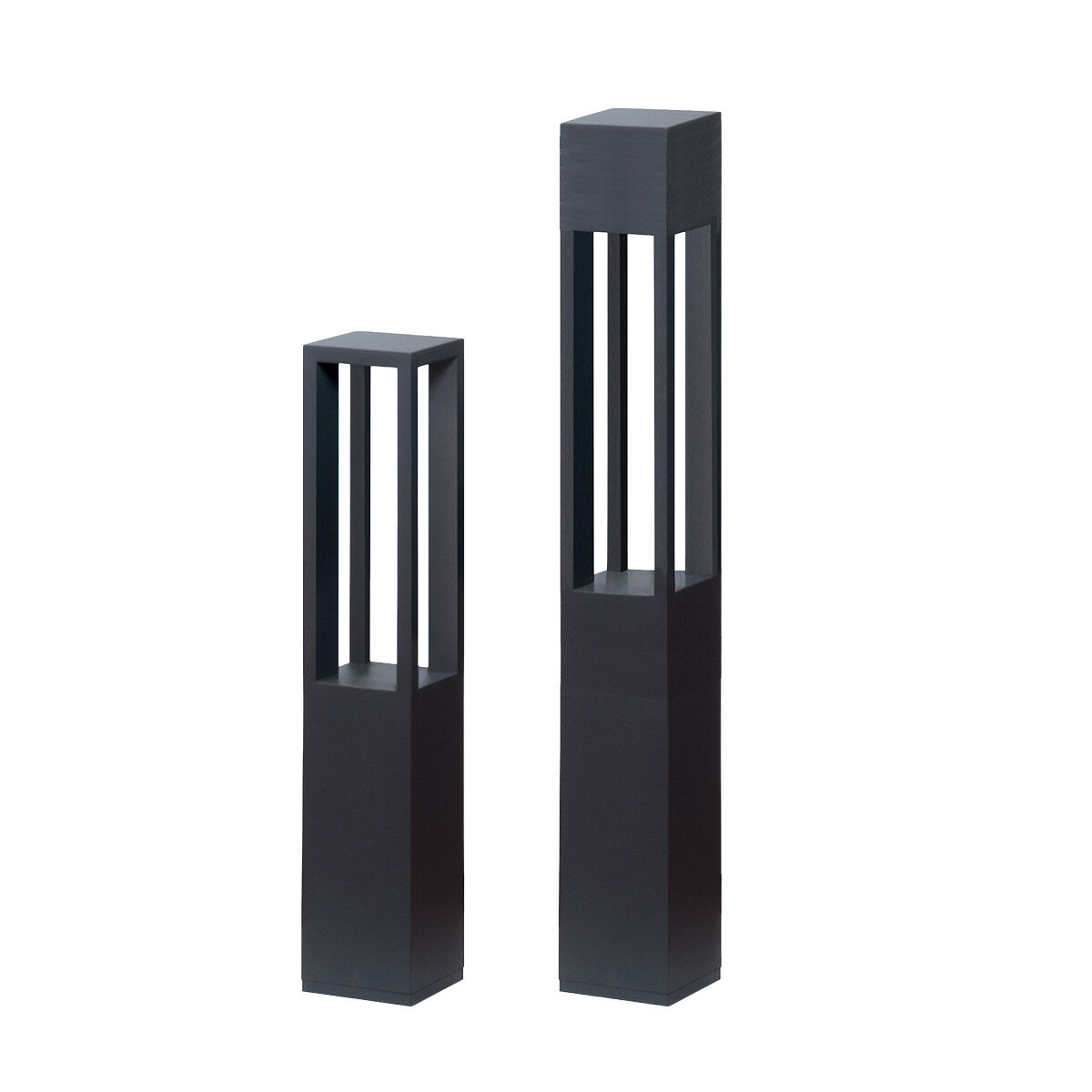

6" Square LumenPole Light Columns and Bollards are designed for architectural relevance to intimate indoor and outdoor environments where pedestrian level illumination is required. The LED COB with reflector provides illumination downward on the ground to light walkways, public gathering spaces, gardens, along waterfronts and marinas and other public and private areas. Typical applications include residential, commercial, and retail.

Benefits

  • Dark Sky Compliant
  • U.S. Assembled
  • Tamper Resistant Hardware
  • IK08 Impact Rating
  • Optional Photocell Sensor/GFCI Provision and In-Use Cover
  • Quick Ship Options Available
  • 90 CRI Standard, 80 CRI on 5000K

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Cold Weather
  • Dark Sky Compliant
  • Emergency
  • ETL Listed
  • IK08 Rated
  • Marine Grade
  • Outdoor
  • US Assembled
  • Tamper Resistant
  • Turtle Safe
  • Wet Location
  • Daylight Sensor
  • Occupancy Sensor
  • QuickShip
    ?

    Quick Ship

    LITON’s Quick Ship catalog was designed for the purpose of expediting the shipping process on some of our most popular luminaires.

    Quick Ship items are available to ship within 10 business days on a first-come-first-served basis and upon request. In the event that our stock is depleted, Customer Service will provide you with an updated ship date. Quick Ship items that are received by LITON by 3PM Eastern Time will be shipped 10 business days from the date of the order. Orders received after 3PM on a weekend or holiday will be processed first thing the next business day.

    The Quick Ship commitment applies only to items listed on this webpage, so we ask that customers submit separate Quick Ship purchase orders that include ONLY Quick Ship items.

    LITON recommends that customers call to verify stock levels prior to placing orders as stock levels change daily. This program only applies to purchase orders of quantities of individual line items that are 50 pieces or less. All orders should be sent to our special Quick Ship orders email address, [email protected].

    LITON makes no guarantee on actual ship dates. Official ship dates are given after order placement.

  • 120V
  • 277V
  • 347V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

Video

1 Special order. Minimum Order, Extended lead time may apply. Consult Factory.
2 Special Order Finish. Minimum order quantity (MOQ) applies. Orders less than MOQ are subject to a special paint set-up fee for the quantity ordered. Extended lead times may apply. Consult Factory.
3 Not rated for cold weather. Minimum fixture outdoor temperature, 0°C (32°F).
4 Starting Temperature -40°C/-40°F. Only available with (UE-DUN) control option.
5 (-TAM-LVR) option only available with Lumens -L05, -L08, or -L10.
6 Special Order. Sent with surface mount JBOX to allow for direct-conduit entry.
7 Only Available for (-40) Height Option.
8 (-347-D10) option only available for Lumens (-L10) & (-L14)
9 (-GFI) intended for use with a 120V separate power input not connected to the luminaire power supply.

Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered.
Extended lead times may apply. Consult Factory.
Consult factory for possible additional options including: USB, AC outlet, speaker hubs, wireless, node mounting, PC/Motion sensor, 7-pin photocell receptacle (C136.41 compliant)
only w/shorting cap, accepts standard twist-lock photocell or PC/Control Node for wireless dimming control.

Dimming Diagrams
