Description

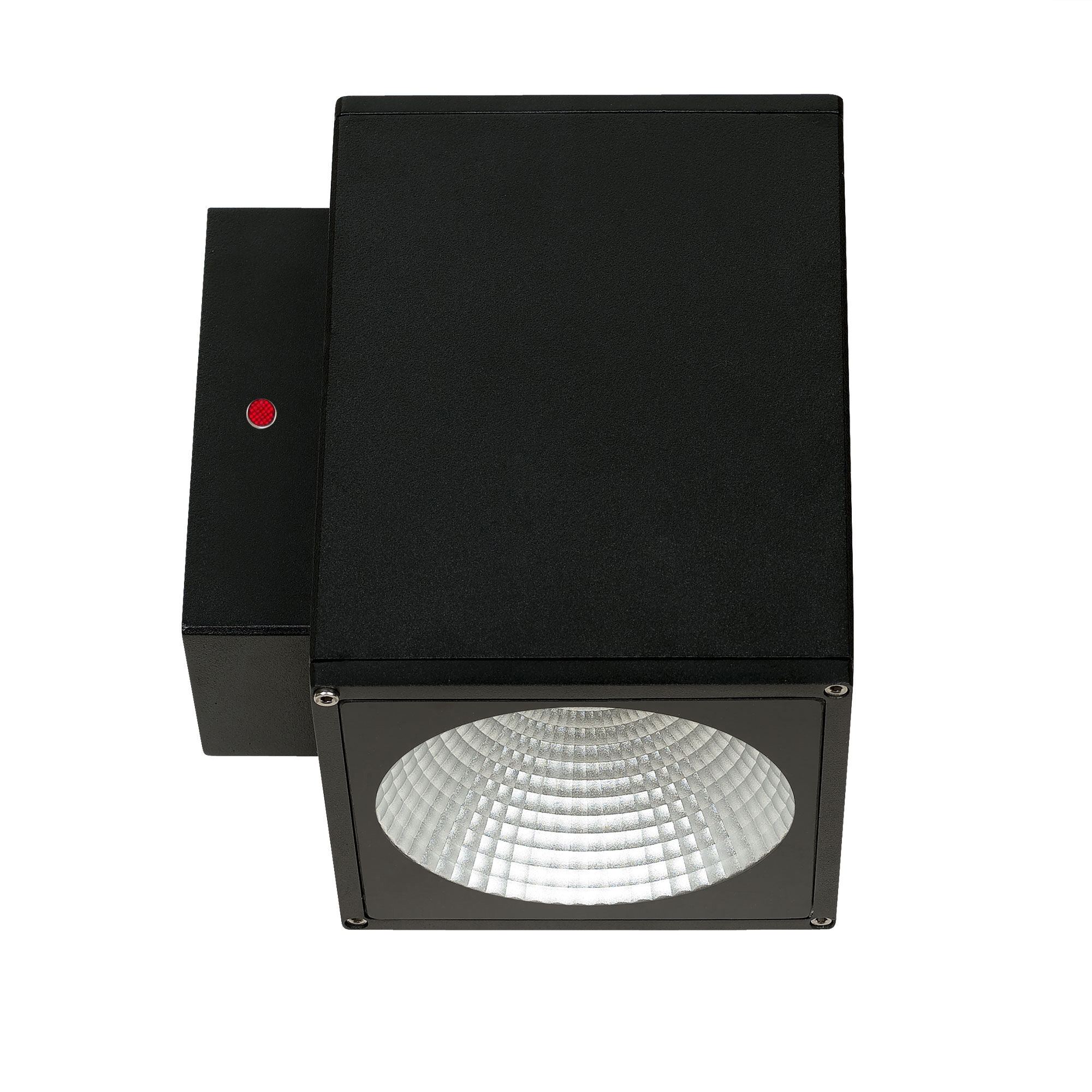

This WD1 Series directional Wall luminaire can be used in both interior and outdoor settings and can be pointed up or down. Typical locations are in commercial and retail spaces that contain walls and/or columns that require directional lighting. Can be used as downlight for direct illumination or an uplights for indirect illumination of architecture facades.

Benefits

  • Illuminated Self-Diagnostic LED test switch
  • Uniform, low glare illumination
  • Durable, corrosion resistant finish
  • Emergency back up available
  • Singular COB Light Source
  • 800Lm Delivered during emergency operation
  • 5-year limited warranty
  • Multiple Wireless Control Options
  • IK08 Rated

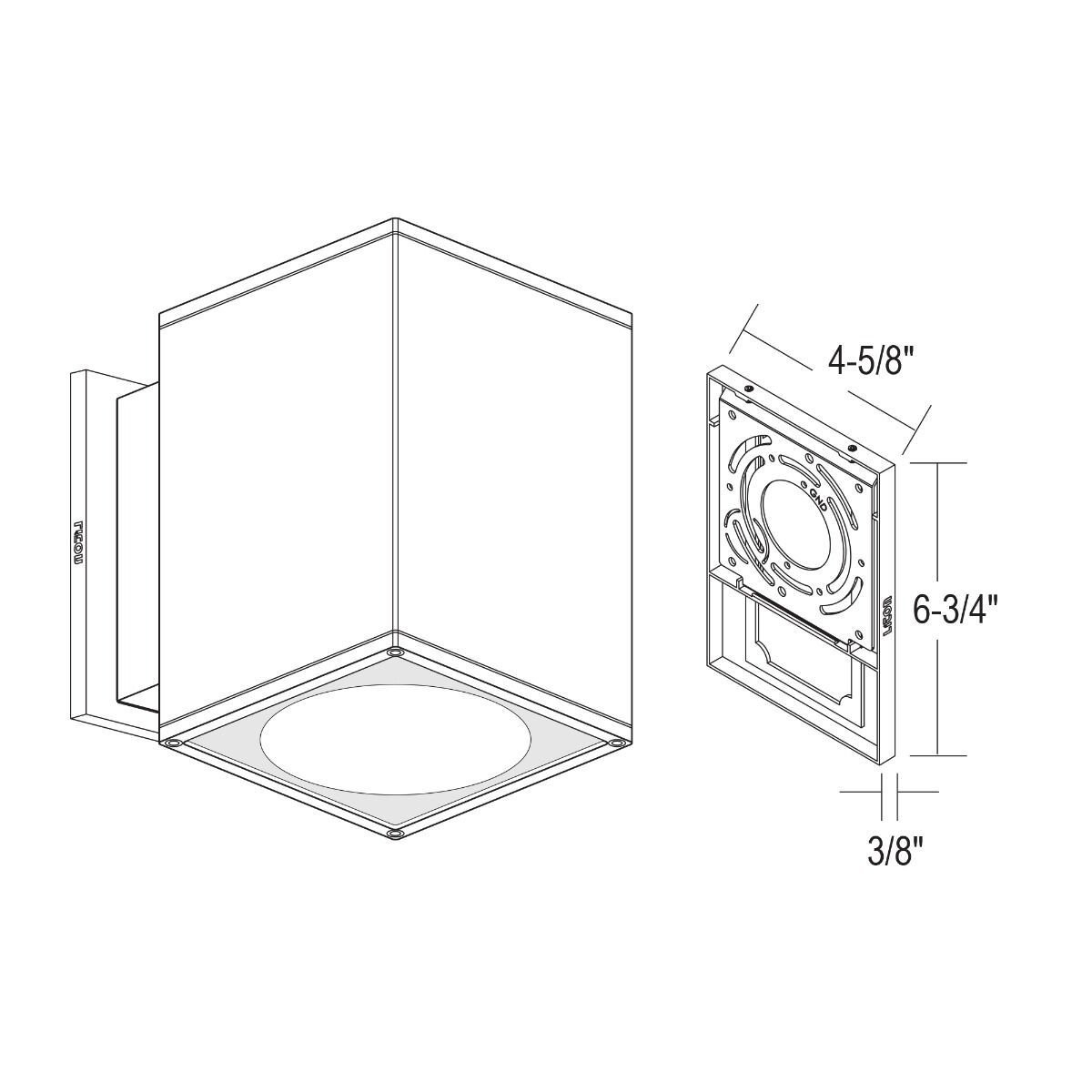

  • New Die-Cast Mounting Plate (-WPDC6)

Available Features
?

Available Features

Based on the option chosen these features will be available. Please check the webpage and specification sheet to ensure the particular feature applies to your product.

  • Emergency
  • IK08 Rated
  • Marine Grade
  • Outdoor
  • US Assembled
  • Vandal Resistant
  • Wet Location
  • Dedicated LED
  • Downlight
  • Pathway Lighting
  • Daylight Sensor
  • Occupancy Sensor
  • 120V
  • 277V
Inquire about this Product! Click Here

Order Configurator

$0.00
Add to Project Folder Add to Project Folder
?

Project Folder

Utilizing our Spec Package feature is a convenient way to keep a list of the fixtures that for a given project. When a selected fixture is added to your Specification Package, it is stored in a list (or package) along with other fixtures previously added. If you are working on multiple projects you can keep track of each one with multiple Specification Packages. This package, which is open to future modifications, can be saved as a PDF to be placed as an order, and can also be shared to others via email. Log-in credentials are required to be able to save a Project Folder.

1 Special Order Finish. Minimum order quantity (MOQ) applies. Orders less than MOQ are subject to a special paint set-up fee for the quantity ordered. Extended lead times may apply. Consult Factory.
2 Special Order. Minimum order quantity (MOQ), extended lead time may apply. Consult Factory.
3 Must Specify Left or Right.
4 (-LVR) Hex-Cell Louver is not compatible with CleanBeam Optics (-CB10), (-CB15), (-CB35).
5 (-SUN-INT) sensor integrated into the reflector. Consult Factory for layout assistance or alternate sensor mounting.
6 Special Order. Must be ordered with -EMB-FC, or -EMB-BLANK.
7 Special Order. Must be ordered with -EMB-BLANK.

⋅ Energy Efficient Chip-On-Board (COB) Singular LED Light source provides for smooth, uniform light output, eliminating the multiple shadow effect seen by multiple LED source products.
⋅ Binned with 3-Step MacAdam Ellipses as recommended by Ansi Standard. Available in 2700k, 3000k, 3500k, 4000k, 5000k, RGBW, and 590nm Amber.
⋅ Custom RAL Color: Please note that we appreciate custom finishes. Custom finishes are subject to a special paint setup fee for the quantity ordered. Extended lead times may apply. Consult Factory.

Dimming Diagrams
